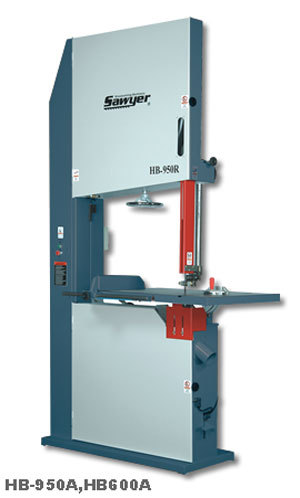

HB-900HA/HB-600A VERTICAL BAND SAW(RESAW)

Product Image
  • HB-900HA/HB-600A VERTICAL BAND SAW(RESAW)

Hoon Hsiang Industrial Co., Ltd.

HB-900HA/HB-600A VERTICAL BAND SAW(RESAW)

Sawing Machine/ Drill/ Planer/ Tenon Machine

Tag:
Share to:

Other products of the company

Product Property:
Function:Sawing Machine/ Drill/ Planer/ Tenon Machine
Brand:
Product Details:
Model HB-600A HB-950A Saw Wheel Diameter 600mm(23-1/2") 940mm(37") Table size 800*605mm(31-1/2"*23-3/4") 1150*800mm(45-1/4"*31-1/2") Table Tiliting 0°~45° 0°~45° Throat Capacity 580mm(22-7/8") 927mm(36-1/2") Height capacity 350mm(13-3/4") 560mm(22") Width of wheel 50mm (2") 50mm (2") Blade speed 710 RPM(4458 F.P.M) 553 RPM(5500 F.P.M) Blade length 4410mm~4480mm(173-5/8"~176-1/2") 6580mm~6630mm(259"~261 ") Blade width 6.3mm~50mm(1/4"~2") 6.3mm~50mm(1/4"~2") Motor 5HP 10HP Dust hood diameter φ4"*2 φ4"*2 Net weight 340kg 720kg Gross Weight 450kg 930kg Machine Size(L*W*H) 1060*800*2070mm 1620*830*2880mm Packing Size (L*W*H) 2160*630*1100mm 2970*760*1550mm Design and specifications are subject to change without prior notice
