Features:
*Fast Line Speed
*Low Electric Current
*Automatic Load-holding Brake
*Power In & Power Out
*Meet SAE J706
*Thermal Protection

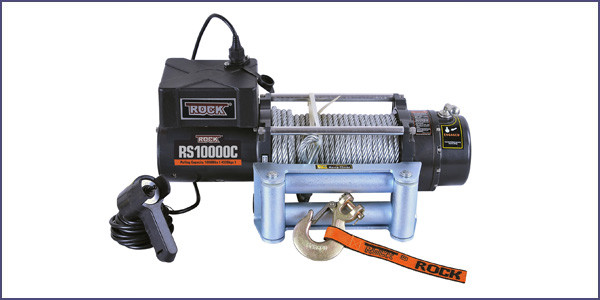

RS10000C/RS10000I Specifications:
Rated Line Pull:10000lbs (4536kgs), Single line
Motor(series wound):
12 V DC,input power 5.7hp (4.2 kw)
24V avaliable
Gear Ratio:295.75:1
Gear Train:3-stage planetary
Drum:Φ2.95''×9''(Φ75×228mm),hardened
Rope supplied:
Aircraft steel cable
Φ3/8''×88'(Φ9.5mm×27m)
Fairlead:Roller fairlead
Hook:3/8""
Winch dimension:22.4""×8.7""×8.4""(569×221×213mm)
Mounting bolt pattern:10""×4.5""(254×114.3mm)
