Product Describe：

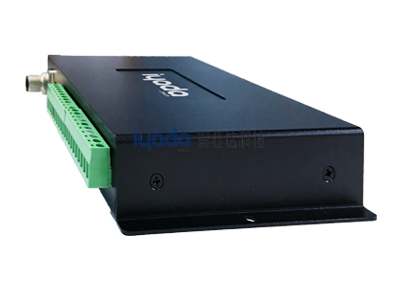

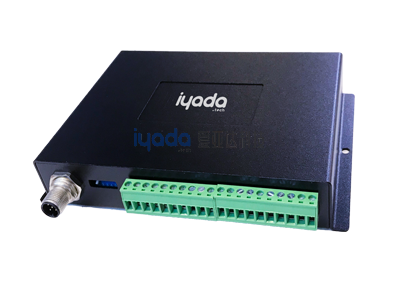

The liquid level and temperature detection unit is a device that collects liquid level and temperature information and feeds it back to the centralized management of ship intelligent system through CAN bus. The residual liquid percentage and temperature information can be read directly on the monitor or mobile device and alarm and warning functions can be set too low or too high.
Product Feature：
1. Support NMEA2000, MODBUS-RTU protocol;
2. Compatible with fuel level, water level and temperature detection;
3. Suitable for containers of various shapes;
4. Support resistance type liquid level and PT100 temperature sensor;
5. Support external 5-way liquid level and 3-way temperature (factory default);
6. Support external 8-way liquid level (special requirements, optional);
7. Support external 8-way temperature (special requirement, optional).
Product Parameters：
| Operating Voltage： | 9V DC to 36V DC, (Rated 12V DC) |
| Rated power： | 2W |
| Accuracy： | Level +/-2% , Temperature +/-2°C |
| Number of support interfaces： | 8 sensors, 1 CAN / RS485 |
| Sensor Output Information： | Resistive |
| Safety Standard： | EN60950-1 |
| EMC Standards： | EN61000-6-2, EN61000-6-4, IEC60945, IEC60533 |
| Vibration： | +1 mm @ (2Hz ~ 13.2Hz), +0.7 g @(13.2Hz ~ 100Hz) |
| Working temperature： | - 25 °C to 55 °C |
| Storage temperature-humidity： | - 40°C ~70°C , ≤95% RH, No Condensation |
| Size(WxHxD)： | 182.0 mm x 32.0 mm x 115.0 mm |
| Installation mode： | Wall mounted installation |
