Product Describe：

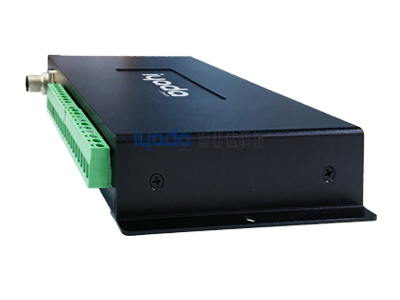

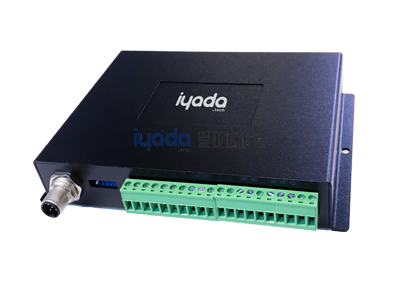

The high water level alarm and detection unit collects the information of the bilge water level and uploads the information to the monitor or the relocation equipment through the interface of CAN and RS485,displays the status of the bilge water level and promptly alarms the relevant personnel for processing.
Product Feature：
1. Support NMEA2000, MODBUS-RTU protocol.
2. Compatible Switch Quantity Detection.
3. 16 channels.
Product Parameters：
| Operating Voltage： | 9V DC to 36V DC, (Rated 12V DC) |
| Rated power： | 2W |
| Number of support interfaces： | 16 sensors, 1 CAN / RS485 |
| Sensor Output Information： | Switching Volume |
| Safety Standard： | EN60950-1 |
| EMC Standards： | EN61000-6-2, EN61000-6-4, IEC60945, IEC60533 |
| Vibration： | +1 mm @ (2Hz ~ 13.2Hz), +0.7 g @ (13.2Hz ~ 100Hz) |
| Working temperature： | - 25°C to 55°C |
| Storage temperature-humidity： | - 40°C ~70°C , ≤95% RH, No Condensation |
| Size(WxHxD)： | 182.0 mm x 32.0 mm x 115.0 mm |
| Installation mode： | Wall mounted installation |
