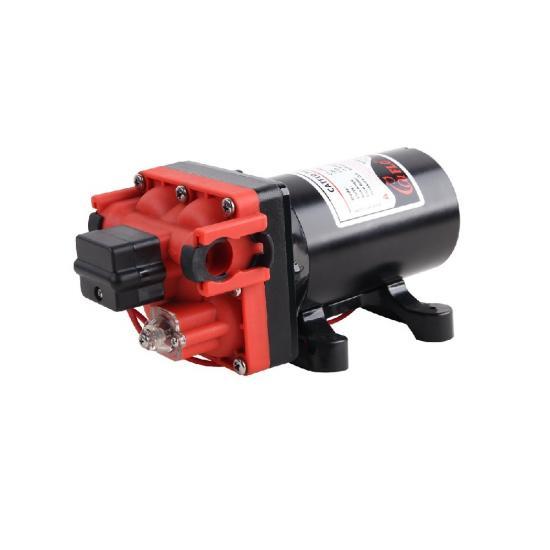

In front of the motor is a valve assembly containing four valve pump chambers. Each valve chamber has a diaphragmbehind it in the lower pump housing.

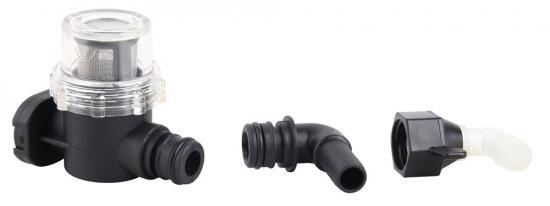

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 4 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a Plate mounted board. Serves 3 or more 1/2" (13mm) outlets. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet.
The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity.
