S\V 14

Target audience :

Designer: Simonis Voogd

Place of production: Jiangsu

Introduction

It is of  a unique concept in that it is able to carry a substantial amount of payload allowing us to use it in a large range of applications. The powerful hull shape is not unlike those used on the latest generation of Volvo Ocean Racers.

As the effective load carrying capacity of the hull is designed to a maximun of 500kgs.there are many different formats for this hull design which it can successfully be used for.

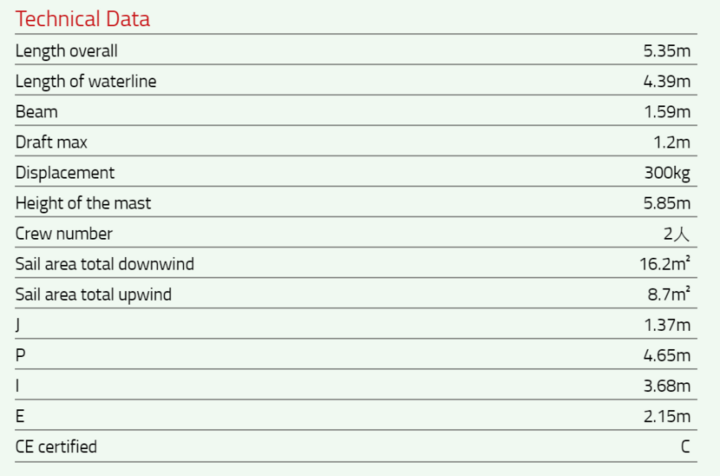

Technical Data

Length overall

5.35m

Length of waterline

4.39m

Beam

1.59m

Draft max

1.2m

Displacement

300kg

Height of the mast

5.85m

Crew number

2人

Sail area total downwind

16.2m²

Sail area total upwind

8.7m²

J

1.37m

P

4.65m

I

3.68m

E

2.15m

CE certified

C
