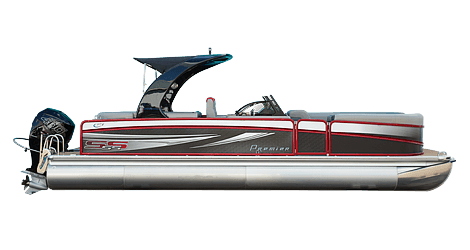

S-SERIES cool and dynamic

Specifications

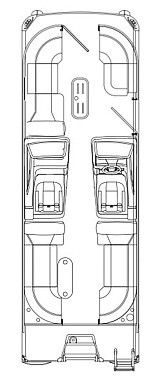

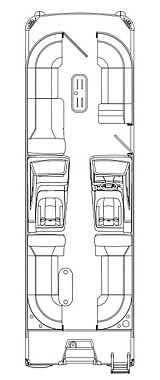

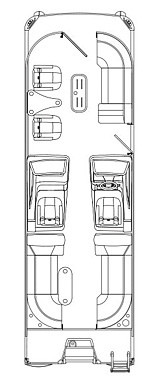

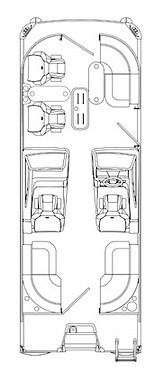

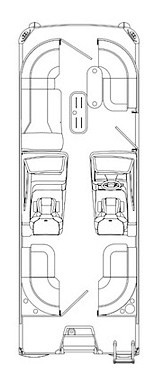

Model: 230RF 250RF 270RF
Length: 23'5" (7.14 m) 25'5" (7.75 m) 27'5" (8.36 m)
Deck length: 23' (7.01 m) 25' (7.62 m) 27' (8.23 m)
Width: 8'6" (2.59 m) 8'6" (2.59 m) 8'6" (2.59 m)
Dry weight (PTX30"): 1,065 kg 1,247 kg 1,474 kg
Maximum load (PTX30"): 1222kg 1,438 kg 1,542 kg
Capacity (PTX30"): 15 16 18
The outer diameter of the pontoon: 25" (0.63 m) 25" (0.63 m) 25" (0.63 m)
Maximum horsepower (PTX30"): 200 hp 250 hp 300 hp

Standard configuration
❖ The distance between the buoy beams is 16"
❖ Extended stern deck layout
❖ Casting anti-collision side
❖ Rubber model of gunwale
❖ 25" diameter pontoon. 090 specification aluminum alloy plate thickness and .125 hoisting ring thickness
❖ 30″PTX package with wave water rectifier cap
❖ Windshield made of transparent glass on both sides
❖ Anti-collision ball fixing buckle and belt
❖ Streamlined fence
❖ 11' streamlined BIMINI roof
❖ Card slot type Bimini canopy bracket (4)
❖ Bimini canopy transportation fixture
❖ LED mooring light & navigation light (corner casting)
❖ Opulent style sofa
❖ Mirage style dressing room
❖ 7-star driver's platform and passenger seat
❖ Executive bridge seat and passenger seat
❖ Sofa support (3)
❖ Trash can
❖ C/L equipment layout
❖ Slender table

Liberty style double command fiberglass bridge
❖ Beacon electronic monitoring system with two screen cameras
❖ Four high-performance speakers
❖ 10" subwoofer
❖ MX400 stereo
❖ Seastar hydraulic steering gear
❖ Adjustable angle steering wheel
❖ Zenith steering wheel
❖ Legacy style instrument: speed/volt, speed/lift
❖ 12 volt power socket
❖ LED atmosphere light
❖ Waterproof canvas boat cover
❖ Stainless steel bow fence
❖ Stainless steel mooring bollard-lift-up bow
❖ Stern resin floor
❖ 47-gallon environmentally friendly fuel tank
❖ Illuminated boarding ladder
❖ Illuminated telescopic ladder

Optional
❖ Atomic set
❖ All-ship enhanced sea grass surface
❖ High performance LED stainless steel speaker grille
❖ USB MP3 interface
❖ Double sun canopy
❖ Underwater LED strip
❖ Sports radar rack
❖ Fence light strip
❖ External light bar
