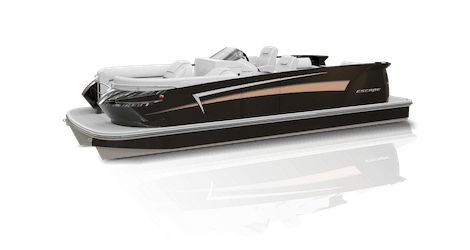

Pontoon boat

Pontoon boat
TTT 21

Specifications
Length / Length-Centerline: 21' 4" (6.50 m)
Width / Beam: 8'6" (2.59 m)
Mold depth / Draft: 27" (0.69 m)
Dry weight (including engine) / Approx. Weight with Engine: 2,979 lbs (1,351 kg)
Fuel Capacity: 49 gal (185 L)
Maximum load (US regulations) / US Max Weight Capacity: 2,800 lbs (1,270 kg)
Capacity (U.S. regulations) / US Person Capacity: 12
Length on Trailer: 28' 8” (8.73)
Elevation angle / Deadrise: 15°
Maximum horsepower / Max. HP: 200hp

Standard configuration
colour
❖ White
❖ Black
❖ Blue
❖ Taupe
Engine options
❖ Evinrude
❖ Honda
❖ Mercury
❖ Suzuki
❖ Yamaha
❖ The engine set includes all pre-installed components by default, and the propeller is not included in the pre-installed components and engine set
cockpit
❖ Compass box for engine control
❖ Windshield
❖ Built-in sink with lid
❖ Refrigerator with door
❖ Cooler
❖ Customized mahogany steering wheel
❖ Integrated switch panel
❖ Hand pump for faucet
❖ Portable fresh water tank; 5 gallons
❖ Tiltable hydraulic operating device
❖ One-piece footrest
❖ Enclosed glove box with resettable fuse board
❖ Raised two-tone fiberglass bridge
❖ Side storage room with lid
❖ Stainless steel beverage cup holder
Pontoon boat canopy
❖ Awning roof with bracket and quick release handle seat
Technical Support
❖ National Marine Manufacturers Association (NMMA) certification
float
❖ TTT conical float technology (patent pending)
❖ Fully welded aluminum pontoon
❖ 0.090 aluminum pontoon thickness plate
❖ 0.125 aluminum pontoon cap
❖ 0.180 one-piece full-frame keel
❖ 15° elevation angle gliding pontoon
❖ Wide hull stabilizes the spine
❖ Conical integrated wave splitting bow
❖ Stern pontoon drainage interface
❖ Triple full width bottom beam

Electrical Equipment
❖ 12V auxiliary plug
❖ Atmosphere lights for bow and stern platform
❖ LED ceiling lighting
❖ Atmosphere light (blue)
❖ Depth sounder
❖ Horn
❖ Ignition switch
❖ Integrated LED docking light
❖ Instrument panel-tachometer; speedometer; trim meter & fuel meter
❖ Lightweight main power switch
❖ Lightweight auxiliary power switch
❖ Navigation light
❖ Audio with 4 speakers, Bluetooth and MP3/IPOD interface
❖ USB port

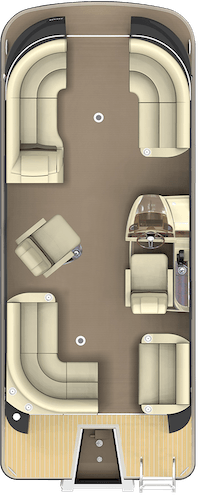

Internal configuration
❖ Custom molded base with built-in storage and exhaust
❖ Boat class 22 oz carved carpet

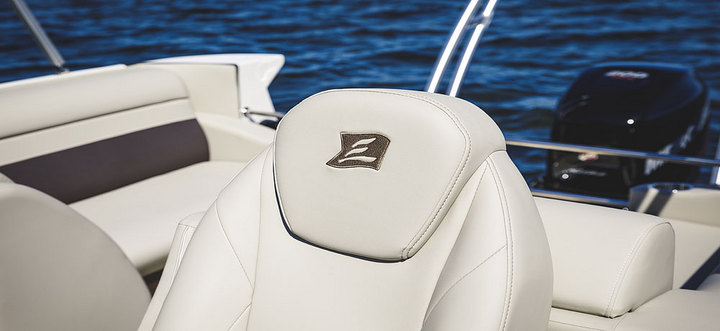

❖ Dual density comfortable soft seat
❖ Neutral color furniture with soft package
❖ Starboard bow solarium with handrails & drink cup holder
❖ Port-side bow solarium with handrails & portable changing room
❖ Port side passenger adjustable recliner with arm & drink cup holder

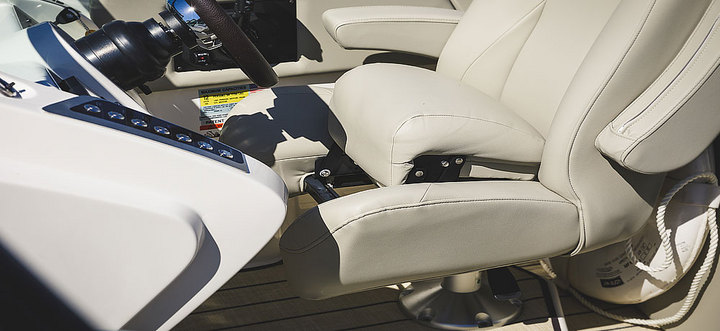

❖ Captain adjustable recliner with arm
❖ Starboard Stern Arm Sofa & Drink Cup Holder
❖ Port stern arm recliner & drink cup holder
❖ Upholstered inside the fence and gate surface
❖ Optional seats based on standard models
External configuration
❖ The four-level boarding ladder is located below the stern deck on the starboard side
❖ The black rubber railing is made of stainless steel
❖ Bow & stern mooring hole (4)
❖ Built-in 49-gallon fuel tank with stainless steel pipe cover
❖ Use double thickness .063 panels for laminated fences
❖ FRP ship bow and stern corner castings
❖ Customization of laminated boat edge color
❖ Customizable stainless steel bow door
❖ Customizable stainless steel stern door
❖ Customizable wood grain board graphics
❖ Fore and starboard railings
❖ Laying a full-width aluminum water barrier under the floor

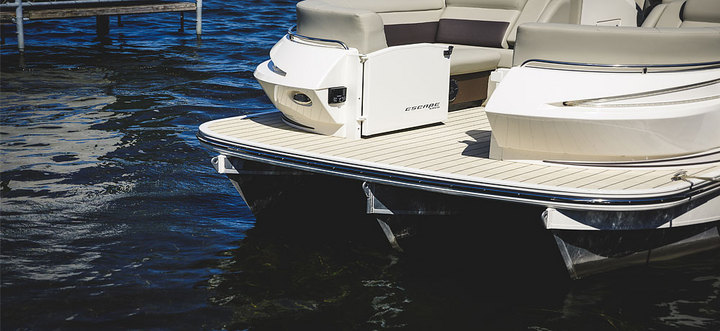

❖ Integrated extended swimming deck on the stern
❖ Boat-class deck (16-inch middle cross structure)
❖ Teak style lining on stern platform
❖ Pull-up 6-inch cable tie (4)
❖ Side door 32 inches port side & 18 inches starboard side
❖ Stainless steel handrail

Optional
High-class sound set
❖ Sound with blue color; dual battery switch;
❖ Amplifier; subwoofer & 4 light speakers
Optional information
❖ Optional seat based on standard model
Seat option 1 includes
❖ Adjustable 4-seater manual recliner on the port stern
Seat option 2 includes
❖ Adjustable recliner on the port stern
Drag
❖ You can get shoreline towing from the manual
Additional drag supply
❖ Eagle and the United Kingdom
