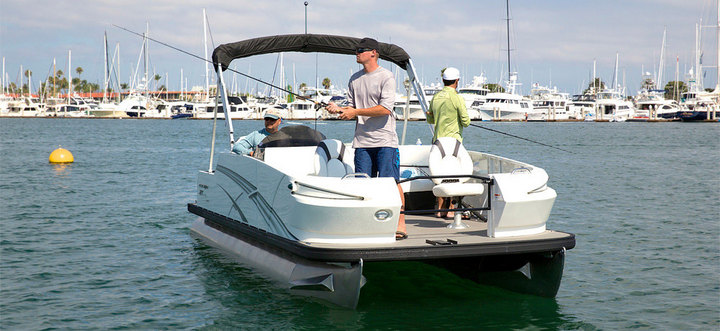

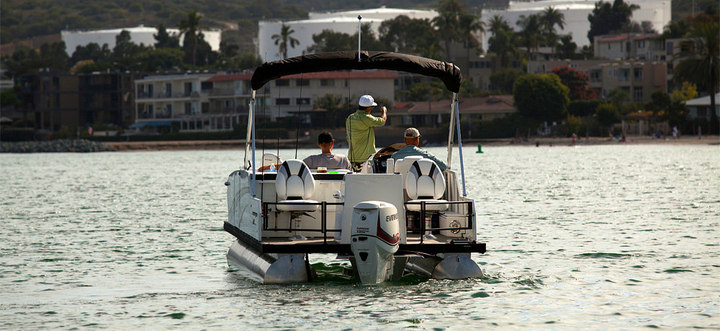

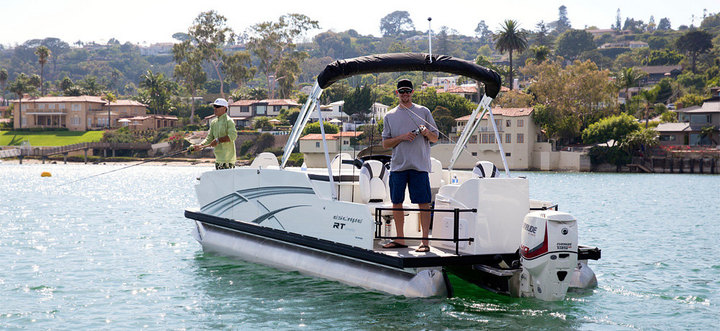

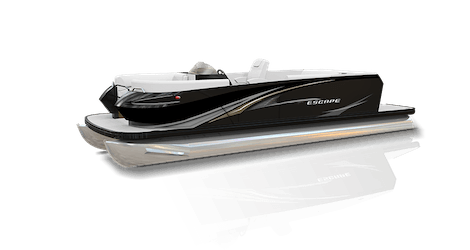

RT 2400

Specifications
Length / Length-Centerline: 24' 4" (7.42 m)
Width / Beam: 8'6" (2.59 m)
Mold depth / Draft: 27" (0.69 m)
Dry weight (including engine) / Approx. Weight with Engine: 2,100 lbs (953kg)
Fuel Capacity: 25 gal (95 L)
Maximum weight (US regulations) / US Max Weight Capacity: 2400lbs (1088kg)
Capacity (U.S. regulations) / US Person Capacity: 12
Length on Trailer: 31’6″(9.6m)
Maximum horsepower / Max. HP: 150HP

Standard configuration
colour
❖ White
❖ Black
❖ Blue
❖ Red

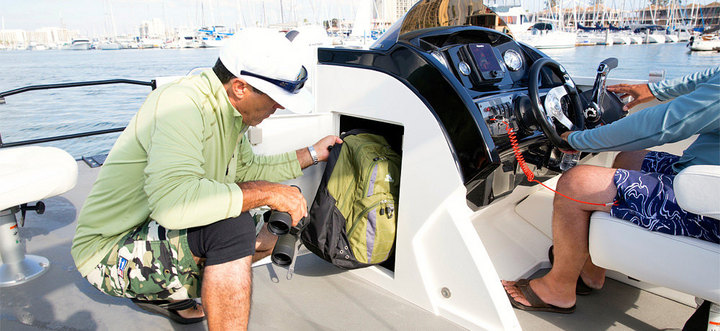

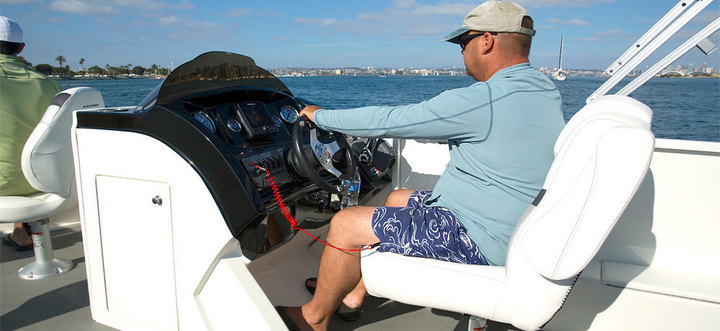

cockpit
❖ Black and inscription yellow steering wheel
❖ Windshield
❖ Engine control mounted compass box
❖ Cooling storage with door
❖ Raised two-tone fiberglass bridge
❖ Integrated switch panel
❖ Integral pedal
❖ Rotatable steering wheel
❖ Stainless steel beverage cup holder
float
❖ Fully welded aluminum alloy construction
❖ 0.080 aluminum pontoon thickness plate
❖ 0.125 engine nacelle thickness
❖ 25’’ diameter sensor bracket
❖ 16’’ center beam
❖ Crossbeam pipe drain plug
Electrical Equipment
❖ 12V auxiliary plug
❖ Atmosphere lights for bow and stern platform
❖ Atmosphere light (blue)
❖ Horn
❖ Ignition switch
❖ Instrument panel-tachometer; speedometer; trim meter & fuel meter
❖ Navigation light
❖ Audio with 4 speakers, Bluetooth and MP3/IPOD interface
❖ USB port

Pontoon boat canopy
❖ Bimini canopy with guide and quick release bracket
Technical Support
❖ National Marine Manufacturers Association (NMMA) certification

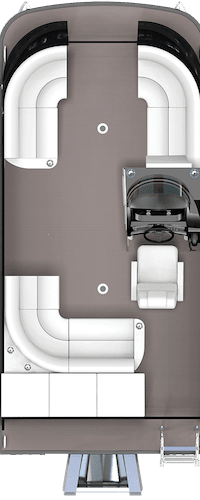

Internal configuration
❖ Custom molded seat base with built-in storage and ventilation
❖ Comfortable foam seat
❖ Same color interior with customized interline
❖ Stainless steel cup holder (8)
❖ Driving platform chair with adjustable armrest
❖ Upholstery inside the side fence
❖ Floor: 20 ounces of marine carpet
❖ Bow port side sofa with folding chair
❖ Port side L-shaped with armrests
❖ Starboard bow sofa with folding seat
❖ Stern storage box with sun pad
❖ Optional seats based on standard models for communication
External configuration
❖ 4-step stainless steel boarding ladder with embedded handrails
❖ 25 gallon fuel tank with top cover
❖ Bow & stern mooring hole (4)
❖ The bow corner of the same color glass fiber reinforced plastic ship
❖ Use double thickness .063 panels for laminated fences
❖ Customization of laminated boat edge color
❖ Front roof fence
❖ Boat-class deck (16-inch middle cross structure)
❖ 33’’ spraying ship bow door
❖ 32’’ painted port side door
❖ Spraying ship stern door
❖ Pull-up 6-inch cable tie (4)

Optional
Premium audio packaging
❖ Audio with Bluetooth; dual battery switch
❖ Loudspeaker; subwoofer & 4 light speakers
Sports suit includes
❖ Two-tone spraying with sporty patterns
Optional information
❖ Adjustable, driver's seat abutment
Seat option 1 includes
❖ The port side L-shaped stern and the stern pad can be replaced with the port-side L-shaped stern salon
Premium package includes
❖ Full brown gel console; silver instrument panel with lined brown vinyl; dark brown seat base; brown carpet; brown and black "standard" pattern
