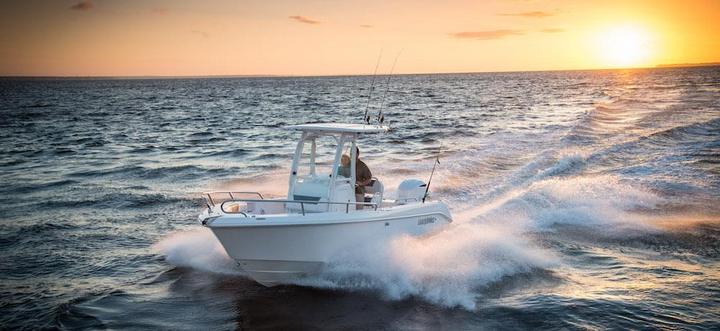

Sea fishing boat

Sea fishing boat
230CC

Specifications

Full length/without engine: 23'7"(7.19m)
Full length including engine: 25'0" (7.62m)
Width: 8'6"(2.59m)
Water hull: 15"(0.38m)
Draft including engine: 30"(0.76m)
Stern plate angle: 19°
Average elevation angle: 36°
Stern board height: 25"(0.63m)
Weight (without engine, approximate): 4,300LBS (1,950kg)
Maximum horsepower: 300hp
Maximum load: 3,600LBS (1633kg)
Fuel tank: 108gal (408.7L)
Water tank: 9gal(34L)
Fly bridge height including hard top: 7'7"(2.3m)
Front fish tank capacity: 60gal (227.1L)
Live fish tank capacity: 27gal (102.2L)
Rear deck space: 61ft² (5.67m²)

Standard configuration
structure
❖ Never sink
❖ Lifetime hull warranty and 5-year shipping warranty
❖ Adjustable deep V hull
❖ Patented closed molding RAMCAP® construction process
❖ NMMA certification
❖ Auto-draining cockpit
❖ No timber structure
❖ High density, closed cell, structured foam floatability
❖ Hull laminate-high quality gel coating, vinyl ester barrier coating, vinyl ester surface coating, polyester printing barrier and knitted biaxial glass fiber
❖ High-density PVC composite beam
❖ The hull liner and deck are perfectly matched into a rigid one-piece structure, which increases its long-term durability
❖ The hull liner is completely internally finished and forms a Class A surface
❖ Embedded diamond anti-skid
❖ Rigging slot-embedded and oversized for easy use
❖ ABS gasket for receiving self-tapping screws and bolts
❖ Aluminum famous brand work-Customized in the house according to strict standards, sandblasted, and then powder coated with high-grade marine-grade materials
❖ Shipboard-all hand-built and can withstand additional heavy loads
❖ Harness-Use marine grade, tinned copper wire, advanced heat shrink connector and waterproof German plug for indoor use
❖ Circuit protection-circuit breakers or fuses protect all circuits
❖ Heavy-duty guide rail with 316 stainless steel insert and throttle valve end cover
❖ 316 stainless steel castings and chrome-plated fasteners have additional corrosion resistance and antifouling properties
❖ All hardware appliances are laminated or lined assembly to prevent corrosion
❖ Stainless steel hinge and latch
❖ Decoration-Extra heavy vinyl and acrylic topcoat, Tenara™ line and mildew-proof liner-adhere to high-density plastic liner (no wood) and flow through the foam cushion
❖ Bonded zinc sheet
❖ Heavy-duty, welded bow and stern, laminated and sealed with polyurethane
❖ Bronze high-speed air intake filter
❖ Transheild™ transport cover
❖ Fuel tank-108 gallons nominal baffle aluminum
Bridge/hardtop
❖ Bridge glove box/storage box
❖ Bridge armrest

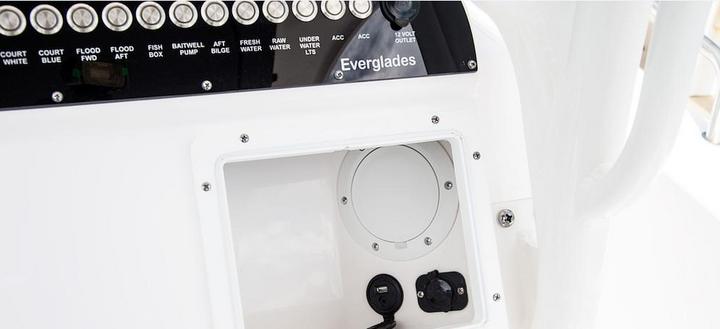

❖ Bridge power port 20A-12VDC
❖ Stainless steel steering wheel
❖ Fire extinguisher (2)
❖ Patented sliding windshield
❖ Stereo speakers are installed on the top plate
❖ FRP hard top with aluminum powder coating frame includes blue and white LED lights, sling lights, electronic box (4) pole mount, ski hanger
❖ Top compartment and toilet with storage cabinets

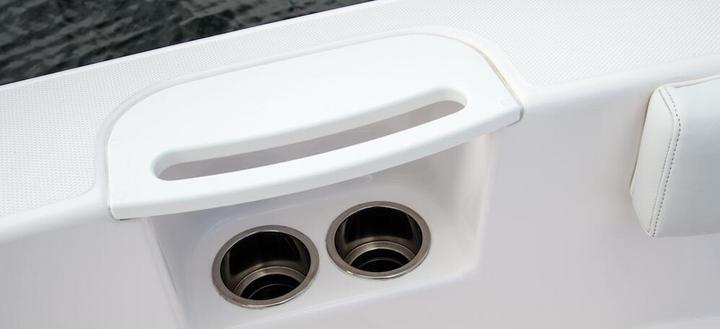

❖ Stainless steel console beverage rack (2)
❖ Canvas life jackets are stored on the top board
Deck/cockpit
❖ Anchor storage cabinet with rope fixing device and 316 stainless steel anchor wheel
❖ Detachable beach boarding ladder located at the bow of the ship

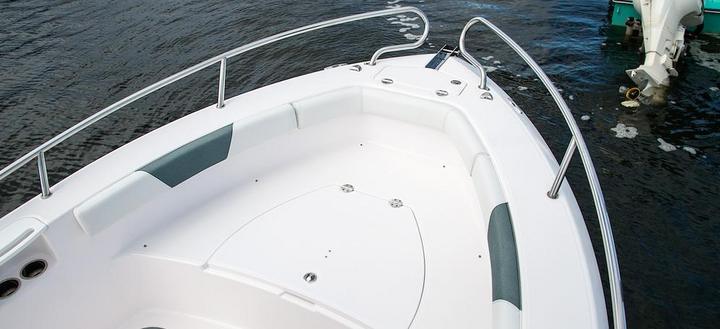

❖ Stainless steel bifurcated bow guardrail
❖ Bow casting platform
❖ The 15 cm pull-up splint is cast in 316 stainless steel and passed through bolts (6)
❖ Blue and white LED ceremonial lighting, equipped with 316 stainless steel shading plate
❖ Stereo speakers installed on the deck
❖ Stainless steel beverage rack
❖ Embedded cockpit drainage ditch
❖ Cockpit cover
❖ Retractable boarding ladder with stainless steel handrails
❖ Swimming platform (2), with telescopic ladder (1), 316 stainless steel ladder handrail
❖ Cockpit area-61sf
seat
❖ Seat with cushions and storage at the bow

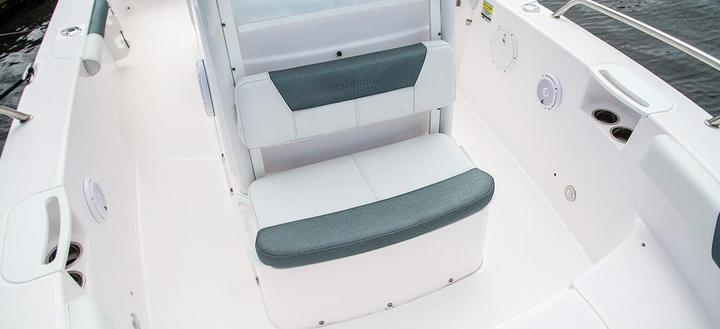

❖ Upholstered front console seat
❖ Insert the sunshade between the front console seat and the bow seat
❖ The stern seat has a folding backrest, which can be converted into a casting platform
❖ Driving seat with armrests
Fishing
❖ Yeti® refrigerator-65qt

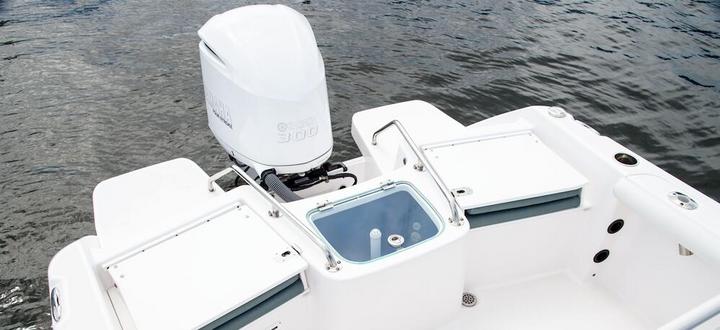

❖ Circulating life with light and 3/8" transparent acrylic cover, stainless steel friction hinge and latch-27 gallons
❖ Fish box (front compartment)-60gal
❖ Laminated and bolted to make the stainless steel gunwale flush with the fishing rod bracket (4)
❖ Power port under the ship's side-30A
❖ Under the gunwale support-(4) total number, (2) on each side
❖ Sufficient storage space for electronic products
Mechanical/Electrical
❖ Automatic bilge pump
❖ High water level alarm
❖ LED anchor light
❖ LED navigation light
❖ Ritchie® compass
❖ Electronic horn
❖ Dual battery switch
❖ Customized stainless steel trim with position indicator and automatic indentation (stand-alone)
❖ Stereo-Welding control head with Bluetooth and JL M series speakers
❖ Rinse the tap with unpurified water

Optional
Options
❖ Additional cup holder (2)
❖ Additional cup/fishing rod holder combination (2)
❖ Kingfish rod holder (requires hard top)
❖ Splitting pole set-16' pole-leeward
❖ Splitting pole set-15' pole (requires hard top)
❖ Quick-adjustable base of splitter rod
❖ Switchable blue and white underwater lights
❖ Helm protector with anti-metal fatigue
❖ Heavy-duty paddle ring
❖ Detachable bow beach boarding ladder
❖ Fresh water rinse-9gal
❖ Storage drawer under the driver's seat
❖ Upgraded, impregnable toilet outboard discharge
❖ Toilet pumped out on the dock side (without macerator)
❖ Seastar Optimus electronic power steering
❖ Thin aluminum powder-coated bow guardrail
❖ Hard cap-delete
❖ CE certification
Canvas/decoration
❖ Canvas color options: black, blue, silver and tan
❖ Interior color: standard white, dark gray and dark beige
❖ Front console seat decoration
❖ Console decoration
❖ Leaning seat/driving seat decoration
❖ Mooring decoration
❖ Butterfly seat rest area pillow
❖ Sunroof with stainless steel plaques (hard top not provided)
Hull color-gel coat
❖ All gel coat color options can be waterline or full hull
❖ The hard top and bottom surface can match the hull color (only gel coating)
❖ White (standard free)
❖ Black
❖ Coral blue
❖ Caribbean Blue
❖ Ice blue
❖ Sky blue
❖ Navy blue
❖ Platinum
❖ Sand color
❖ Dark green
Hull color-paint
❖ Check the local distributor and EvergladesAwlgrip® paint chart
Engine combination
❖ Yamaha Y-Cop® anti-theft device (not compatible with Yamaha Helm Master)
❖ All engine and drilling rig kits include stainless steel propellers,
❖ White painted engine
❖ Yamaha pre-installed (CommandLink®Plus display)
❖ Stand-alone Yamaha 250hp (CommandLink®Plus display)
❖ Stand-alone Yamaha300hp (CommandLink®Plus display screen)
Electronic device
❖ Garmin VHF 200 Black
❖ Garmin VHF 300 Black
❖ Garmin GPSMAP® 7610xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Chart plotter
❖ Garmin GSD® 25 Premium remote digital sounder
❖ Garmin GT50M-TH
❖ CHIRP Transducers
❖ Garmin GMR 24 xHD marine radar
❖ Garmin GMR 624 xHD2 marine radar
❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
❖ SiriusXM radio (requires subscription)
❖ Premier audio package upgrade
