Sea fishing boat

Sea fishing boat
230CC

Specifications

Full length/without engine: 24'3"(7.4m)
Full length including engine: 25'8"(7.8m)
Width: 8'2"(2.5m)
Draft hull: 16"(0.4m)
Draft including engine: 31"(0.79m)
Stern plate angle: 19°
Average elevation angle: 31°
Stern board height: 30"(0.76m)
Weight (without engine, approximate): 4,000LBS (1814kg)
Maximum horsepower: 300 hp
Fuel tank: 1,725LBS(782kg)
Water tank: 82gal(310L)
Wastewater tank: 9gal(34L)
Fly bridge height including hard top: 7'5"(2.3m)
Rear fish tank capacity: 67gal (254L)
Live fish tank capacity: 36gal (136L)
Rear deck space: 85ft² (5.67m²)

Standard configuration
structure
❖ Never sink
❖ Lifetime hull warranty and 5-year shipping warranty
❖ Adjustable deep V hull
❖ Patented closed molding RAMCAP® construction process
❖ NMMA certification
❖ Auto-draining cockpit
❖ No timber structure
❖ High density, closed cell, structured foam floatability
❖ Hull laminate-high quality gel coating, vinyl ester barrier coating, vinyl ester surface coating, polyester printing barrier and knitted biaxial glass fiber
❖ High-density PVC composite beam
❖ The hull liner and deck are perfectly matched into a rigid one-piece structure, which increases its long-term durability
❖ The hull liner is completely internally finished and forms a Class A surface
❖ Embedded diamond anti-skid
❖ Rigging slot-embedded and oversized for easy use
❖ ABS gasket for receiving self-tapping screws and bolts
❖ Aluminum famous brand work-Customized in the house according to strict standards, sandblasted, and then powder coated with high-grade marine-grade materials
❖ Shipboard-all hand-built and can withstand additional heavy loads
❖ Circuit protection-circuit breakers or fuses protect all circuits
❖ Heavy-duty guardrail with 316 stainless steel insert and throttle valve end cap
❖ 316 stainless steel castings and chrome-plated fasteners have additional corrosion resistance and antifouling properties
❖ All five-gone appliances are laminated or lined assembly to prevent corrosion
❖ Stainless steel hinge and latch
❖ Decoration-Super-heavy vinyl and acrylic paint, Tenara™ line and anti-mold liner-Adhere to high-density plastic liner (non-white material) and flow through the foam cushion
❖ Bonded zinc sheet
❖ Heavy-duty, welded bow and stern, laminated and sealed with polyurethane
❖ ⻘Copper high-speed filter
❖ Transheild™ transport cover
❖ Fuel tank-108 gallons nominal baffle aluminum
Bridge/hardtop
❖ Driver's platform cover box/storage box
❖ Bridge support
❖ Bridge power terminal 20A-12VDC
❖ Stainless steel direction plate
❖ Destroyer (2)
❖ Patented sliding stop glass
❖ Stereo speakers are installed on the top plate
❖ FRP hard top with aluminum powder coating frame includes blue and white LED lights, sling lights, electric box (4) pole seat, ski hanger
❖ Top compartment and washroom with storage cabinets
❖ Stainless steel bridge beverage rack (2)
❖ Canvas rescue is stored on the top board
Deck/cockpit
❖ Bow casting platform
❖ The 15 cm pull-up splint is cast in 316 stainless steel and passed through bolts (6)
❖ Blue and white LED ceremonial lighting, equipped with 316 stainless steel shading plate
❖ Stereo speakers installed on the deck
❖ Stainless steel beverage rack
❖ Embedded cockpit drain
❖ Cockpit cover
❖ Wrapped pillow
❖ FRP swimming platform with concealed telescopic ladder support
❖ Thin aluminum powder-coated ship bow rail
❖ Cockpit area -85sf
seat

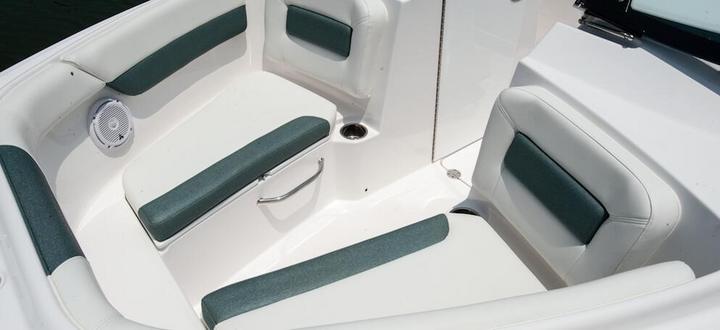

❖ Seat with cushions and storage at the bow
❖ Upholstered front driver's platform seat
❖ The stern seat has a folding backrest, which can be converted into a casting platform
❖ With supporting driver's seat
mechanical
❖ Automatic bilge pump
❖ High water level alarm
❖ LED anchor light
❖ LED navigation light
❖ Ritchie® compass
❖ Electric speakers
❖ Dual battery switch
❖ Customized stainless steel corrugated board with position indicator and auto retract (stand-alone)
❖ Stereo-Welding control head with blue and JL M series speakers
❖ Light water rinse head
❖ Unpurified water rinse head
Fishing
❖ Yeti® refrigerator-65qt
❖ Circulation with light and 3/8" transparent acrylic cover, stainless steel friction hinge and latch-36 gallons
❖ Box (front compartment)-67gal
❖ Laminating and bolting the stainless steel gunwale to be level with the pole frame (4)
❖ Power port under the ship's side-30A
❖Under the side pole frame-(4) total number, (2) on each side
❖Port and starboard lockers
❖ Retractable cooler compartment
❖ Lockers with locks
❖ Locked pole storage
❖ Rechargeable storage space for electronic products

Optional
Options
❖ Bow padded sofa
❖ Additional cup holder (2)
❖ Additional cup/fishing rod rack combination (2)
❖ Kingfish rod rack (requires hard top)
❖ Splitting pole set-16' pole --taco
❖ Splitting pole set-15' pole-leeward
❖ Dividing rod base that can be quickly exchanged
❖ Underwater light that can switch between blue and white
❖ Mast observation deck with ladder
❖ Upper cab: 3-position sliding canopy/rudder seat, polyester cup holder (4), foot pedals, decorative indicator, and reserved space for communication equipment
❖ Fishing bag: T & H A t l a s ™ 1000 top plate, 10'PowerPole®, traction motor with iPilot® and charger
❖ T&H Atlas™ top plate
❖ MinnKota®Riptide iPilot trolling motor
❖ 3.04 power pole
❖ Traction motor with 110VAC charger
❖ Double lifting platform
❖ Driving seat arrow launcher
❖ Additional swimming platform with ladder
❖ Helm protector for anti-fatigue
❖ Heavy scratch ring
❖ Tilt rod with 4 rod holders
❖ Storage drawer under the driver's seat
❖ Hard cap-delete
❖ CE certification
Canvas/decoration
❖ Canvas color options: black, blue, silver and sepia
❖ Interior colors: standard white, dark gray and dark cockpit decoration
❖ Front driver's pedestal decoration
❖ Bridge decoration
❖ Leaning seat/driving seat decoration
❖ Mooring decoration
❖ Refrigerator liner
❖ Upper cab decoration
❖ Sunroof with stainless steel decoration (hard top not provided)
Hull Color-Gel Coating
❖ All gel coat color options can be line or full hull
❖ Hard top and bottom can match the hull color (only gel coating
❖ White (standard free)
❖ ⿊color
❖ Coral blue
❖ Galle blue
❖ Ice blue
❖ Sky blue
❖ Navy blue
❖ White
❖ Sand
❖ Dark green
Hull color-paint
❖ Check the local distributor and EvergladesAwlgrip® paint chart
Engine combination
❖ Yamaha Y-Cop® anti-theft device (not compatible with Yamaha Helm Master)
❖ All engine and drilling rig kits include stainless steel propellers,
❖ White painted engine
❖ Yamaha pre-installed (CommandLink®Plus display)
❖ Stand-alone Yamaha 250hp (CommandLink®Plus display)
❖ Stand-alone Yamaha300hp (CommandLink®Plus display screen)
Electronic device
❖ Garmin VHF 200 Black
❖ Garmin VHF 300 Black
❖ Garmin GPSMAP® 7610xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Chart plotter
❖ Garmin GSD® 25 Premium remote digital sounder
❖ Garmin GT50M-TH
❖ CHIRP Transducers
❖ Garmin GMR 24 xHD marine radar
❖ Garmin GMR 624 xHD2 marine radar
❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
❖ SiriusXM radio (requires subscription)
❖ Premier audio package upgrade
