Sea fishing boat

Sea fishing boat
253CC

Specifications

Full length/without engine: 24'9"(7.5m)
Full length including engine: 26'10"(8.18m)
Width: 8'6"(2.59m)
Draft hull: 16"(0.4m)
Draft including engine: 28"(0,71m)
Stern plate angle: 20°
Average elevation angle: 30°
Stern board height: 30"(0.76m)
Weight (without engine, approximate): 5,250LBS (2381kg)
Maximum horsepower: 300HP
Fuel tank: 100gal (378.5L)
Water tank: 20gal(75.7L)
Fly bridge height including hard top: 8'6"(2.59m)
Rear fish tank capacity: 69gal (261.2L)
Live fish tank capacity: 26gal (98.4L)
Rear deck space: 91ft² (8.5m²)

Full length/without engine: 24'9"(7.5m)
Full length including engine: 26'10"(8.18m)
Width: 8'6"(2.59m)
Draft hull: 16"(0.4m)
Draft including engine: 28"(0,71m)
Stern plate angle: 20°
Average elevation angle: 30°
Stern board height: 30"(0.76m)
Weight (without engine, approximate): 5,250LBS (2381kg)
Maximum horsepower: 300HP
Fuel tank: 100gal (378.5L)
Water tank: 20gal(75.7L)
Fly bridge height including hard top: 8'6"(2.59m)
Rear fish tank capacity: 69gal (261.2L)
Live fish tank capacity: 26gal (98.4L)
Rear deck space: 91ft² (8.5m²)
Standard configuration
structure
❖ Never sink
❖ Lifetime hull warranty and 5-year shipping warranty
❖ Adjustable deep V hull
❖ Patented closed molding RAMCAP® construction process
❖ NMMA certification
❖ Auto-draining cockpit
❖ No timber structure
❖ High density, closed cell, structured foam floatability
❖ Hull laminate-high-quality gel coating, vinyl ester barrier coating, vinyl ester surface coating, polyester printing barrier and knitted biaxial glass fiber
❖ High-density PVC composite beam
❖ The hull liner and deck are perfectly matched into a rigid one-piece structure, which increases its long-term durability
❖ The hull liner is completely internally finished and forms a Class A surface
❖ Embedded diamond anti-skid
❖ Rigging slot-embedded and oversized for easy use
❖ ABS plastic liner is used for self-tapping screws and bolts
❖ Aluminum famous brand work-Customized in the house according to strict standards, sandblasted, and then powder coated with high-grade marine-grade materials
❖ Harness-Use marine grade, tinned copper wire, high-grade heat shrink connector and water-proof German plug for indoor use
❖ Circuit protection-circuit breakers or fuses protect all circuits
❖ Heavy-duty guardrail with 316 stainless steel insert and throttle valve end cap
❖ 316 stainless steel castings and chrome-plated fasteners have additional corrosion resistance and antifouling properties
❖ All five-gone appliances are laminated or lined assembly to prevent corrosion
❖ Stainless steel hinge and latch
❖ Decoration-Super-heavy vinyl and acrylic paint, Tenara™ line and anti-mold liner-Adhere to high-density plastic liner (non-white material) and flow through the foam cushion
❖ Bonded zinc sheet
❖ Heavy-duty, welded bow and stern, laminated and sealed with polyurethane
❖ Green Copper high-speed filter
❖ Transheild™ transport cover
❖ Fuel tank-108 gallons nominal baffle aluminum

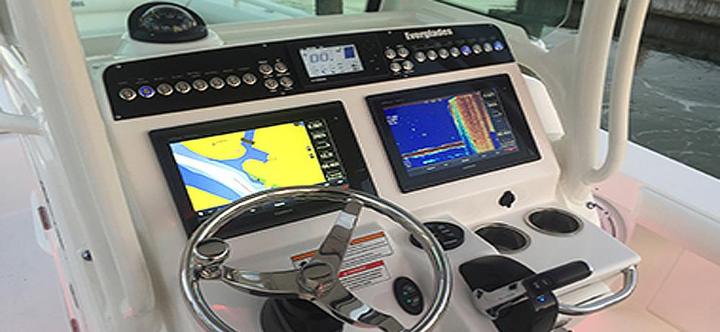

Console
❖ Console box/storage box
❖ Console support
❖ Console power port with USB charging port
❖ Stainless steel direction plate
❖ Tempered glass, hydraulic sliding glass, with smart brush and cleaning system
❖ Stereo speakers installed on the hardtop
❖ FRP hard top with aluminum powder coating frame includes blue
And white LED lights, spreader lights, electric sliding glass, electric box, (4) rod rack, a set of kinfish rod rack
❖ Seastar Optimus electric steering
❖ Portapotty with dock side pump-out
❖ Stainless steel frame (2)
❖ Rescue is stored in the hardtop
Deck/cockpit
❖ 8" pull-up splint cast 316 stainless steel and bolts (6)
❖ Blue and white LED lighting with 316 stainless steel shading plate
❖ Stereo speakers are installed on the deck
❖ Stainless steel beverage rack
❖ Embedded cockpit drain
❖ Cockpit cover
❖ Wrapped on the coaming
❖ Luxury sound package-including JL amplifier and low-frequency cannon
❖ Cockpit area-91sf
Fishing
❖ Reefer box 87qt
❖ Using light and 3/8 "transparent acrylic cover, stainless steel friction hinge and latch 26gal"
❖ Box (front compartment) 69gal
❖ Laminating and bolting the stainless steel gunwale to be level with the pole frame (4)
❖ Power port -30A located under the ship's side
❖ The pole frame under the ship's side, on each side (2)
❖ Storage space for charged electronic equipment
Mechanical/Electrical
❖ Automatic bilge pump
❖ High water level alarm
❖ LED anchor light
❖ LED navigation light
❖ Ritchie® compass
❖ Electric speakers
❖ Battery charger
❖ Customized stainless steel corrugated board with position indicator and auto retract (stand-alone)
❖ Stereo sound fusion control head and blue and JL M series speakers
❖ Light water rinse head
❖ Original water rinse head

Optional
Optional
❖ Additional cup holder (2)
❖ Additional cup/rod rack combination (2)
❖ Docking lights
❖ Carbon fiber steering wheel
❖ Bar table light bar 30 "(If it is selected, delete the spotlight)
❖ Splitting pole set-15' pole-Taco
❖ Split pole package-16' pole-Lee
❖ Quick-adjustable base for dividing rod
❖ Underwater light blue and white can be switched
❖ T&H AtlasTM jack plate
❖ Minn Kota® Riptide iPilot trolling motor (excluded with windlass option)
❖ 8'Power Pole Blade®
❖ Additional swimming platform with ladder
❖ Anti-fatigue steering wheel
❖ Underwater camera
❖ Satellite Security System Navigation System 1.0

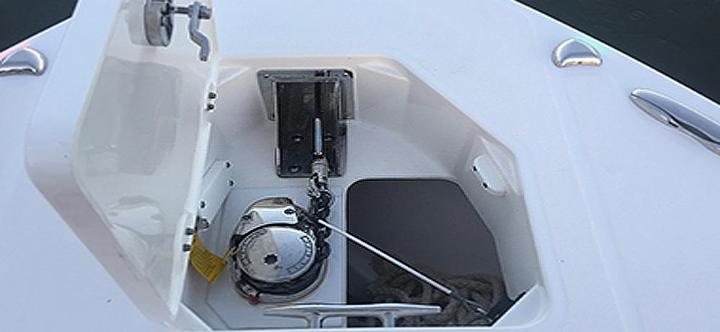

❖ Windlass
❖ Black Powder coating
❖ CE certification
Hull Color—Paint
❖ View local distributors and Everglades Awlgrip® paint charts
Hull Color-Gel Coating
❖ All gel coat color options can be line or full hull
❖ Hard top and bottom can match the hull color (only gel coating)
❖ White (standard free)
❖ Black, Galle blue, dark blue, white, blue
❖ Ice blue, sand, sky blue
Canvas/decoration
❖ Canvas color options: black, blue, silver and sepia
❖ Interior colors: standard white, dark gray and dark white
❖ Front console seat decoration
❖ Console decoration
❖ Leaning seat/driving seat decoration
❖ Mooring cover
❖ Carbon fiber rod frame on the bow
Engine combination
❖ Yamaha Y-Cop® anti-theft device
❖ All engine and drilling rig kits include stainless steel propellers, (s)
❖ White painted engine(s)
❖ Black Color spray paint engine(s)
❖ The paint engine matches the hull color
❖ Yamaha Pre-rig
❖ Stand-alone Yamaha 250hp (Command Link® Plus display)
❖ Stand-alone Yamaha 300hp (Command Link® Plus display)
Electronic device
❖ Garmin VHF 200 Black
❖ Garmin VHF 300 Black
❖ Garmin GPSMAP® 7610xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Chart plotter
❖ Garmin GSD® 25 Premium remote digital sounder
❖ Garmin GT50M-TH
❖ CHIRP Transducers
❖ Garmin GMR 24 xHD marine radar
❖ Garmin GMR 624 xHD2 marine radar
❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
❖ SiriusXM radio (requires subscription)
❖ Premier audio package upgrade
