Sea fishing boat
255CC

Specifications

Full length/without engine: 24'7"(7.5m)
Full length including engine: 26'11"(8.2m)
Width: 9'3"(2.82m)
Draft hull: 19"(0.48m)
Draft including engine: 32"(0.81m)
Stern plate angle: 21°
Average elevation angle: 37°
Stern board height: 25"/25"(0.64m/0.64m)
Weight (without engine, approximate): 5,800lbs (2,631kg)
Maximum horsepower: 400HP
Maximum load: 4,200lbs(1,905kg)
Fuel tank: 154gal (582.9L)
Water tank: 20gal(75.7L)
Wastewater tank: 9gal(34L)
Fly bridge height including hard top: 7'9"(2.36m)
Front fish tank capacity: 51gal (193L)
Rear fish tank capacity: 47gal (177.7L)
Live fish tank capacity: 34gal (128.7L)
Rear deck space: 81ft² (7.5m²)

Standard configuration
structure
❖ Never sink
❖ Lifetime hull warranty and 5-year shipping warranty
❖ Adjustable deep V hull
❖ Patented closed molding RAMCAP® construction process
❖ NMMA certification
❖ Auto-draining cockpit
❖ No timber structure
❖ High density, closed cell, structured foam floatability
❖ Hull laminate-high-quality gel coating, vinyl ester barrier coating, vinyl ester surface coating, polyester printing barrier and knitted biaxial glass fiber reinforced plastic
❖ High-density PVC composite beam
❖ The hull liner and deck are perfectly matched into a rigid one-piece structure, which increases its long-term durability
❖ The hull liner is completely internally finished and forms a Class A surface
❖ Embedded diamond anti-skid
❖ Rigging slot-embedded and oversized for easy use
❖ ABS plastic liner is used for self-tapping screws and bolts
❖ Aluminum famous brand work-Customized in the house according to strict standards, sandblasted, and then powder coated with high-grade marine-grade materials
❖ Shipboard-all hand-built and can withstand additional heavy loads
❖ Harness-Use marine grade, tinned copper wire, advanced heat shrink connector and waterproof German plug for indoor use
❖ Circuit protection-circuit breakers or fuses protect all circuits
❖ Heavy-duty guardrail with 316 stainless steel insert and throttle valve end cap
❖ 316 stainless steel castings and chrome-plated fasteners have additional corrosion resistance and antifouling properties
❖ All hardware appliances are laminated or lined assembly to prevent corrosion
❖ Stainless steel hinge and latch
❖ Decoration-Extra heavy vinyl and acrylic topcoat, Tenara™ thread and mildew-proof liner-Adhere to high-density plastic liner (no wood) and flow through the foam cushion
❖ Heavy-duty, welded bow and stern, laminated and sealed with polyurethane
❖ Bonded zinc sheet
❖ Bronze high-speed air intake filter
❖ Transheild™ transport cover
❖ Fuel tank-154 gallons nominal baffle aluminum
bridge
❖ Bridge glove box/storage box
❖ Bridge armrest
❖ Console power port with USB charging port
❖ Bridge power port 20A-12VDC
❖ Stainless steel steering wheel
❖ Molded glass fiber reinforced plastic foot pedal at the tiller
❖ Fire extinguisher (3)
❖ Tempered glass, hydraulic sliding windshield, with smart wiper and cleaning system
❖ Stereo speakers are installed on the top plate
❖ FRP hard top with aluminum powder coating frame includes blue and white LED lights, chandeliers, electric sliding windshield, electric box, (5) rod rack, a set of kinfish rod rack
❖ Seastar Optimus electronic power steering
❖ Porta potty and pump out on the dock side
❖ Canvas life jackets are stored on the top board
Deck/cockpit

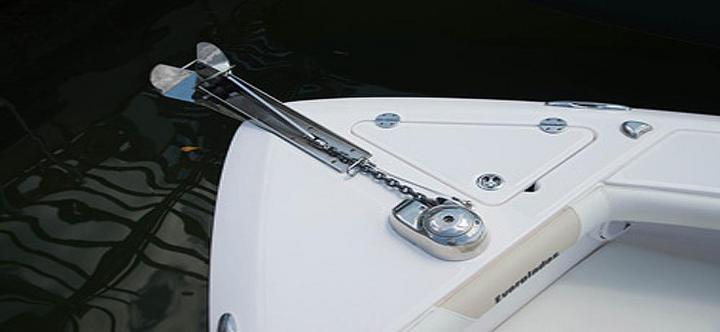

❖ 200ft 1/2-8PLAIT 10ft 3/8 chain with rotation and anchor
❖ Bow casting platform
❖ The 20.3 cm upper pull splint is cast in 316 stainless steel and passed through bolts (4)
❖ Hawse tube with fixed splint
❖ Blue and white LED ceremonial lighting, equipped with 316 stainless steel shading plate
❖ Stereo speakers installed on the deck
❖ Stainless steel beverage rack
❖ Embedded cockpit drainage ditch
❖ Cockpit cover
❖ Covered cover
❖ Retractable boarding ladder with stainless steel handrails
❖ Powder coated towel rack
❖ Beam door with first test drain
❖ Cockpit area-81sf
Fishing
❖ Yeti® refrigerator-65qt
❖ Circulating life with light and 3/8" transparent acrylic cover, stainless steel friction hinge and latch-34 gallons
❖ Fish box (front compartment)-51gal
❖ Fish box (rear compartment)-47 gallons
❖ Laminated and bolted to make the stainless steel gunwale flush with the fishing rod bracket (4)
❖ Power port under the ship's side-30A
❖ Under the gunwale support-(4) total number, (2) on each side
❖ Equipped with lockable storage cabinets on the port and starboard sides
❖ Retractable cooler compartment
❖ Inclined column command station
❖ Stern shaft (5)
❖ Kingfish rod holder
❖ Sufficient storage space for electronic products
Mechanical/Electrical
❖ Automatic bilge pump
❖ High water level alarm
❖ LED anchor light
❖ LED navigation light
❖ Ritchie® compass
❖ Electronic horn
❖ Pre-wired battery charger 110VAC
❖ Customized stainless steel corrugated board with position indicator and automatic retracting (stand-alone)
❖ Stereo-Welding control head with Bluetooth and JL M series speakers
❖ Fresh water flushing faucet
❖ Rinse the tap with unpurified water
seat
❖ Seat with cushions and storage at the bow
❖ Upholstered front console seat
❖ Mechanical stern seat, open for battery storage
❖ Driving seat with armrests

Optional
Options
❖ Padded padding
❖ The seat tube of the driver's seat
❖ Remote control spotlight
❖ The freezer with drawer replaces the traditional refrigerator
❖ Additional cup holder (2)
❖ Additional cup/fishing rod holder combination (2)
❖ Docking lights
❖ Splitting pole set-15' pole --taco
❖ Splitting pole set-16' pole-Lee
❖ Quick-adjustable base for dividing rod
❖ Switchable blue and white underwater lights
❖ Mast lookout with ladder
❖ Helm protector against metal fatigue
❖ Heavy-duty paddle ring
❖ Water ski trailer on top of the pole frame
❖ CE certification
Hull color-paint
❖ Check the local distributor and EvergladesAwlgrip® paint chart
Electronic device
❖ Garmin VHF 200 Black
❖ Garmin VHF 300 Black
❖ Garmin VHF 300 AIS Black
❖ Garmin GPSMAP® 7612xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Dual displays
❖ Garmin GPSMAP® 8617mfd Chart plotter
❖ Garmin GSD® 25 Premium remote digital sounder
❖ Garmin GT50M-TH
❖ CHIRP Transducers
❖ Garmin GMR 24 xHD marine radar
❖ Garmin GMR 624 xHD2 marine radar
❖ Garmin GPH Reactor hydraulic core pack with smart pump
❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
❖ SiriusXM radio (requires subscription)
❖ Premier audio package upgrade
Hull color-gel coat
❖ All gel coat color options can be waterline or full hull
❖ The hard top and bottom surface can match the hull color (only gel coating)
❖ White (standard free)
❖ Black
❖ Coral blue
❖ Caribbean Blue
❖ Ice blue
❖ Sky blue
❖ Navy blue
❖ Platinum
❖ Sand color
❖ Dark green
Canvas/decoration
❖ Canvas color options: black, blue, silver and tan
❖ Interior color: standard white, dark gray and dark beige
❖ Front console seat decoration
❖ Console decoration
❖ Leaning seat/driving seat decoration
❖ Mooring decoration
❖ Cockpit decoration
❖ 3-sided rain shelter
