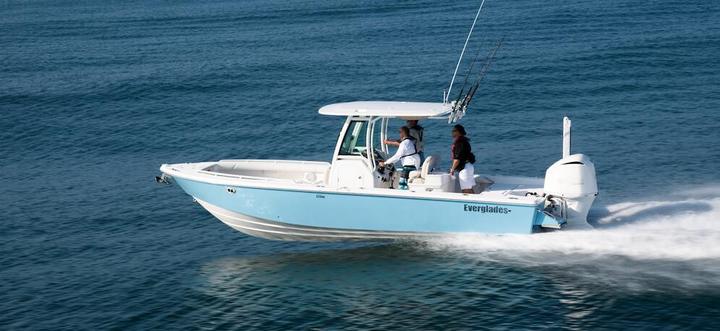

Sea fishing boat

Sea fishing boat
273CC

Specifications

Full length/without engine: 27'3"(8.3m)
Full length including engine: 29' (8.8m)
Width: 9'3"(2.8m)
Draft hull: 18"(0.46m)
Draft including engine: 31" (Twin) 36" (Single)
Stern plate angle: 20˚
Average elevation angle: 36°
Stern board height: 25"/25" (Twin) 30" (Single)
Weight (without engine, approximate): 6,400LBS (2,902kg)
Maximum horsepower: 500HP
Fuel tank: 157gal(594L)
Water tank: 20gal(75.7L)
Wastewater tank: 6gal(22.7L)
Fly bridge height including hard top: 7'11"(2.41m)
Front fish tank capacity: 82gal (310.3L)
Live fish tank capacity: 31gal (117.3L)
Rear deck space: 108ft² (10m²)

Standard configuration
structure
❖ Never sink
❖ Lifetime hull warranty and 5-year shipping warranty
❖ Adjustable deep V hull
❖ Patented closed molding RAMCAP® construction process
❖ NMMA certification
❖ Auto-draining cockpit
❖ No timber structure
❖ High density, closed cell, structured foam floatability
❖ Hull laminate-high-quality gel coating, vinyl ester barrier coating, vinyl ester surface coating, polyester printing barrier and knitted biaxial glass fiber reinforced plastic
❖ High-density PVC composite beam
❖ The hull liner and deck are perfectly matched into a rigid one-piece structure, which increases its long-term durability
❖ The hull liner is completely internally finished and forms a Class A surface
❖ Embedded diamond anti-skid
❖ ABS plastic liner is used for self-tapping screws and bolts
❖ Aluminum famous brand work-Customized in the house according to strict standards, sandblasted, and then powder coated with high-grade marine-grade materials
❖ Harness-Use marine grade, tinned copper wire, advanced heat shrink connector and waterproof German plug for indoor use
❖ Circuit protection-circuit breakers or fuses protect all circuits
❖ Heavy-duty guardrail with 316 stainless steel insert and throttle valve end cap
❖ 316 stainless steel castings and chrome-plated fasteners have additional corrosion resistance and antifouling properties
❖ All hardware appliances are laminated or lined assembly to prevent corrosion
❖ Stainless steel hinge and latch
❖ Decoration-Extra heavy vinyl and acrylic topcoat, Tenara™ thread and mildew-proof liner-Adhere to high-density plastic liner (no wood) and flow through the foam cushion
❖ Bonded zinc sheet
❖ Heavy-duty, welded bow and stern, laminated and sealed with polyurethane
❖ Bronze high-speed air intake filter
❖ Transheild™ transport cover
❖ Fuel tank-157 gallons nominal baffle aluminum
Console
❖ Console box/storage box
❖ Console support
❖ Console power port with USB charging port
❖ Stainless steel direction plate
❖ Fire killer (3)
❖ 16 inch widescreen monitor for flat installation (3)
❖ Tempered glass, hydraulic sliding glass, with smart brush and cleaning system
❖ Stereo speakers installed on the hardtop
❖ FRP hard top with aluminum powder coating frame includes blue and white LED lights, sling lights, electric box (4) pole seat, ski hanger
❖ Seastar Optimus electric steering
❖ Chinese cupboard with macerator and storage tank
❖ Stainless steel console drink holder
❖ Rescue is stored in the hardtop
Fishing
❖ Refrigerator (front compartment 97qt)-(rear compartment 45qt)
❖ Pressurized circulation live fish cabin with light and 9.5mm transparent acrylic cover with stainless steel friction hinge and latch-31 gallons
❖ Fish box (front compartment)-82gal
❖ Laminated and bolted to make the stainless steel gunwale flush with the fishing rod bracket (4)
❖ The power port (2) located under the ship's side, and the USB power port (2) located at the bow of the ship
❖ Rod holders under the ship's side on each side (2)
❖ Raw water and fresh water tank with sprayer
❖ Lockable pole storage rack
❖ Sufficient space for electronic equipment
Deck/cockpit
❖ 200ft 1/2-8PLAIT 10ft 3/8 chain with rotation and anchor
❖ The 20.3 cm pull-up splint is cast in 316 stainless steel and passed through bolts (6)
❖ Stereo speakers are installed on the deck
❖ Stainless steel beverage rack
❖ Cockpit cover
❖ Retractable boarding ladder with stainless steel props located on the rungs
❖ Thin aluminum powder-coated boat
❖ Original water tank with sprayer
❖ Cockpit area-108sf
Mechanical/Electrical
❖ Automatic bilge pump
❖ High water level alarm
❖ LED anchor light
❖ LED navigation light
❖ LED lighting
❖ Ritchie® compass
❖ Electronic horn
❖ Customized stainless steel corrugated board with position indicator and automatic retracting (stand-alone)
❖ Stereo-Fusion control head with Bluetooth and JL M series speakers
❖ Fresh water flushing faucet
❖ Rinse the faucet with raw water
seat

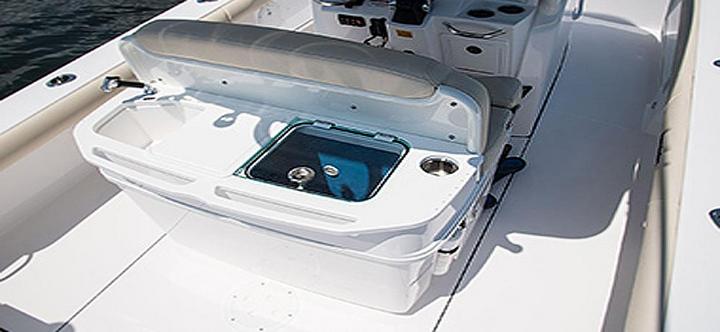

❖ Padded front console seat
❖ Bow seat with detachable forward backrest and lockable storage space
❖ AFT folding 1/4 seats

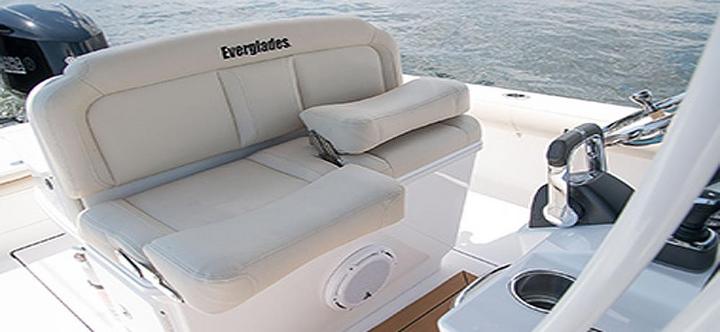

❖ Driver's seat with armrests

Optional
Options
❖ Additional cup holder (2)
❖ Additional cup/rod bracket combination (2)
❖ Docking lights
❖ Split pole package-15' pole-Taco
❖ Split pole package-16' pole-Lee
❖ Quick-adjustable base for dividing rod
❖ The underwater light can be switched between blue and white
❖ T&H Atlas™ top plate
❖ MinnKota®Ulterra trolling motor
❖ 3m power pole blade
❖ Traction motor with 110VAC charger
❖ 3m double electric knife bar (single engine only)
❖ Outboard swimming platform with ladder
❖ Resistant to metal fatigue tiller
❖ Heavy-duty paddle ring
❖ CE certification
Canvas/decoration
❖ Canvas color options: black, blue, silver and tan
❖ Interior color: standard white, dark gray and dark beige
❖ Front console seat decoration
❖ Console decoration
❖ Rely on seat/driver seat decoration
❖ Mooring decoration
❖ 3-sided rain shelter
Hull color-gel coat
❖ All gel coat color options can be waterline or full hull
❖ The hard top and bottom surface can match the hull color (only gel coating)
❖ White (standard free)
❖ Black
❖ Coral blue
❖ Caribbean Blue
❖ Ice blue
❖ Sky blue
❖ Navy blue
❖ Platinum
❖ Sand color
❖ Dark green
Engine combination
❖ Yaha Helm main control system (standard 435CC)
❖ Yamaha Y-Cop® anti-theft device (not compatible with Yamaha Helm Master)
❖ All engine and drilling rig kits include stainless steel propellers
❖ White painted engine
❖ Yamaha pre-installed (CommandLink®Plus display)
❖ Stand-alone Yamaha 350hp (CommandLink®Plus display)
❖ Dual-machine Yamaha 250hp (CommandLink®Plus display)
Hull color-paint
❖ Check the local distributor and EvergladesAwlgrip® paint chart
Electronic device
❖ Garmin VHF 200 Black
❖ Garmin VHF 300 Black
❖ Garmin GPSMAP® 7610xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Dual displays
❖ Garmin GPSMAP® 7616xsv Chart plotter
❖ Garmin GPSMAP® 7616xsv Dual displays
❖ Garmin GSD® 25 Premium remote digital sounder
❖ Garmin GT50M-TH
❖ CHIRP Transducers
❖ Garmin GMR 24 xHD marine radar
❖ Garmin GMR 624 xHD2 marine radar
❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
❖ SiriusXM radio (requires subscription)
❖ Premier audio package upgrade
