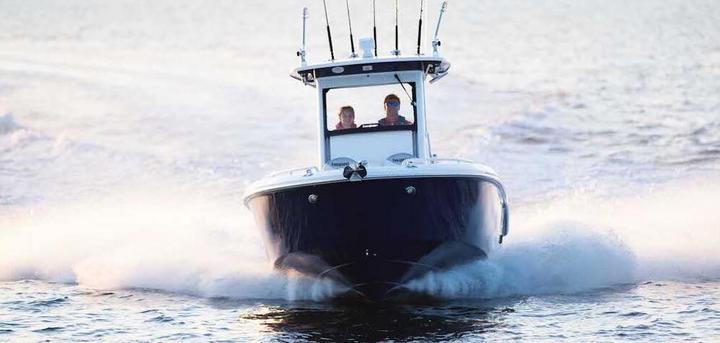

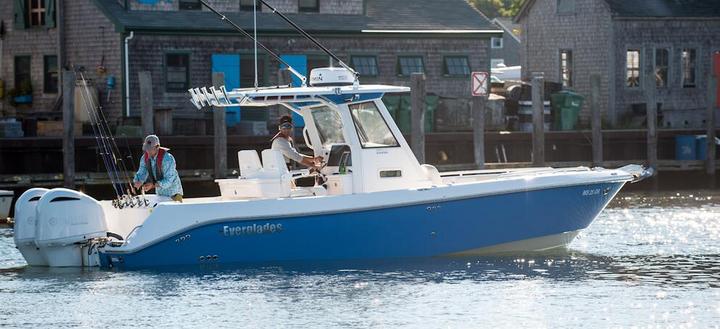

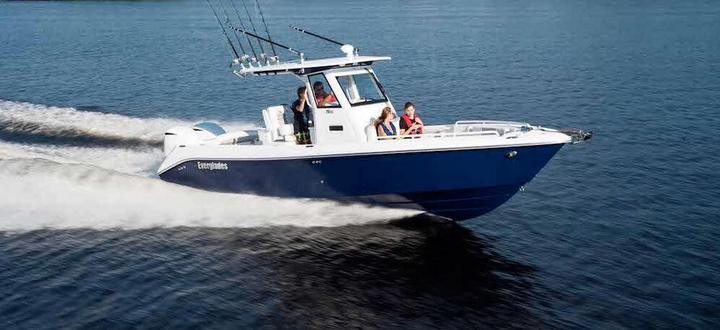

Sea fishing boat

Sea fishing boat
295CC

Specifications

Full length/without engine: 28'7"(8.7m)
Full length including engine: 30'11"(9.1m)
Width: 9'9"(2.98m)
Draft hull: 20"(0.51m)
Draft including engine: 33"(0.84m)
Stern plate angle: 21°
Average elevation angle: 37°
Stern board height: 25"/25"(0.64m/0.64m)
Weight (without engine, approximate): 7,000LBS (3175kg)
Maximum horsepower: 600hp
Fuel tank: 184gal (696.4L)
Water tank: 25gal(94.6L)
Wastewater tank: 9gal(34L)
Fly bridge height including hard top: 8'00"(2.43m)
Front fish tank capacity: 105gal (397.2L)
Rear fish tank capacity: 66gal (250L)
Live fish tank capacity: 34gal (128.7L)
Rear deck space: 121ft² (11.2m²)

Standard configuration
structure
❖ Never sink
❖ Lifetime hull warranty and 5-year shipping warranty
❖ Adjustable deep V hull
❖ Patented closed molding RAMCAP® construction process
❖ NMMA certification
❖ Auto-draining cockpit
❖ No timber structure
❖ High density, closed cell, structured foam floatability
❖ Hull laminate-high-quality gel coating, vinyl ester barrier coating, vinyl ester surface coating, polyester printing barrier and knitted biaxial glass fiber reinforced plastic
❖ High-density PVC composite beam
❖ The hull liner and deck are perfectly matched into a rigid one-piece structure, which increases its long-term durability
❖ The hull liner is completely internally finished and forms a Class A surface
❖ Embedded diamond anti-skid
❖ Rigging groove-molded and oversized for easy use
❖ ABS plastic liner is used for self-tapping screws and bolts
❖ Aluminum famous brand work-Customized in the house according to strict standards, sandblasted, and then powder coated with high-grade marine-grade materials
❖ Shipboard: all hand-built and can withstand extra heavy loads
❖ Wire harness-Use marine grade, tinned copper wire, advanced heat shrink connector and waterproof German plug for indoor use
❖ Circuit protection-circuit breakers or fuses protect all circuits
❖ Heavy-duty guardrail with 316 stainless steel insert and throttle valve end cap
❖ 316 stainless steel castings and chrome-plated fasteners have additional corrosion resistance and antifouling properties
❖ All hardware appliances are laminated or lined assembly to prevent corrosion
❖ Stainless steel hinge and latch
❖ Decoration-Extra heavy vinyl and acrylic topcoat, Tenara™ thread and mildew-proof liner-Adhere to high-density plastic liner (no wood) and flow through the foam cushion
❖ Bonded zinc sheet
❖ Heavy-duty, welded bow and stern, laminated and sealed with polyurethane
❖ Bronze high-speed air intake filter
❖ Transheild™ transport cover
❖ Fuel tank-184 gallons nominal baffle aluminum
Console
❖ Console box/storage box
❖ Console support
❖ Console power port 20A-12VDC
❖ Stainless steel direction plate
❖ Fire killer (3)
❖ Tempered glass, hydraulic sliding glass, with smart brush and cleaning system
❖ Stereo speakers installed on the hardtop
❖ FRP hard top with aluminum powder coating frame includes blue and white LED lights, sling lights, electric box (4) pole seat, ski hanger
❖ Seastar Optimus electric steering
❖ Porcelain cupboard with macerator and storage tank
❖ Rescue is stored in the hardtop
Deck/cockpit
❖ 200ft 1/2-8PLAIT 10ft 3/8 chain with rotation and anchor
❖ Bow casting platform
❖ The 20.3 cm upper pull splint is cast in 316 stainless steel and passed through bolts
❖ Hawse tube with fixed splint (2)
❖ Blue and white LED lighting with 316 stainless steel shading plate
❖ Stereo speakers are installed in the deck
❖ Stainless steel beverage rack
❖ Embedded cockpit drainage ditch
❖ Cockpit cover
❖ Retractable boarding ladder with stainless steel handrails located on the crosspiece
❖ Thin aluminum powder-coated bow guardrail
❖ Beam door with free opening
❖ Raw water tank with sprayer
❖ Cockpit area-121sf
Seat
❖ Bow seat with padded and storage space
❖ Padded front console seat
❖ Mechanical seat, open to store battery
❖ Driver's seat with armrests
Fishing
❖ Yeti® refrigerator-75qt
❖ Pressurized circulation live fish cabin with light and 9.5mm transparent acrylic cover with stainless steel friction hinge and latch-34 gallons
❖ Fish box (rear compartment) -66gal
❖ Fish box (front compartment)-105gal
❖ Laminated and bolted to make the stainless steel gunwale flush with the fishing rod bracket (4)
❖ The power port under the ship's side-30A
❖ Fishing rod holders under the ship's side-total (4), on each side (2)
❖ Retractable refrigerator
❖ Lockable pole storage rack
❖ Main cockpit
❖ Stern shaft (5)
❖ Rod rack
❖ Sufficient space for electronic equipment
mechanical
❖ Automatic bilge pump
❖ High water level alarm
❖ LED anchor light
❖ LED navigation light
❖ Ritchie® compass
❖ Electronic horn
❖ Pre-wired battery charger 110VAC
❖ Customized stainless steel corrugated board with position indicator and automatic retracting (stand-alone)
❖ Stereo-Fusion control head with Bluetooth and JL M series speakers
❖ Fresh water flushing faucet
❖ Rinse the faucet with raw water

Optional
Options
❖ Driving seat riser
❖ Remote control spotlight
❖ Drawer freezer replaces traditional refrigerator
❖ Side utility door with ladder that opens inward
❖ Additional cup holder (2)
❖ Additional cup/rod bracket combination (2)
❖ Docking lights
❖ Splitting pole set-15' pole-Taco
❖ Splitting pole set-16' pole – Lee
❖ Quick-adjustable base for dividing rod
❖ The underwater light can be switched between blue and white
❖ Mast lookout with ladder
❖ Anti-metal corrosion tiller protector
❖ Heavy-duty paddle ring
❖ CE certification
Canvas/decoration
❖ Canvas color options: black, blue, silver and tan
❖ Interior color: standard white, dark gray and dark beige
❖ Front console seat decoration
❖ Bridge decoration
❖ Leaning seat/driving seat decoration
❖ Mooring decoration
❖ Cockpit decoration
❖ 3-sided rain shelter
Electronic device hull color-gel color
❖ Garmin VHF 200 Black
❖ Garmin VHF 300 Black
❖ Garmin VHF 300 AIS Black
❖ Garmin GPSMAP® 7612xsv Chart plotter
❖ Garmin GPSMAP® 7612xsv Dual displays
❖ Garmin GPSMAP® 7616xsv Chart plotter
❖ Garmin GPSMAP® 7616xsv Dual displays
❖ Garmin GSD® 25 Premium remote digital sounder
❖ Garmin GT50M-TH
❖ CHIRP Transducers
❖ Garmin GMR 24 xHD marine radar
❖ Garmin GMR 624 xHD2 marine radar
❖ Garmin GPH Reactor hydraulic core pack with smart pump
❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
❖ SiriusXM radio (requires subscription)
❖ Premier audio package upgrade
Hull color-paint
❖ Check the local distributor and EvergladesAwlgrip® paint chart
Engine combination
❖ Optimus 360 Electric Power Steering (Joystick)
❖ Yamaha Y-Cop® anti-theft device (not compatible with Yamaha Helm Master)
❖ All engine and drilling rig kits include stainless steel propellers
❖ White painted engine
❖ Yamaha pre-installed (CommandLink®Plus display)
❖ Dual-camera Yamaha 300hp (CommandLink®Plus display)
Hull color-gel color
❖ All gel coat color options can be waterline or full hull
❖ The hard top and bottom surface can match the hull color (only gel coating)
❖ White (standard free)
❖ Black
❖ Coral blue
❖ Caribbean Blue
❖ Ice blue
❖ Sky blue
❖ Navy blue
❖ Platinum
❖ Sand color
❖ Dark green
