Boat Parts & Accessories
No price quoted.
1701 Wuyue Apartment Building, Anyang Street, Ruian city, Zhejiang Province
Quick Details
Place of Origin:
Zhejiang, China
Part:
CYLINDER
Product Name:
CRANK CYLINDER ASSY
Model:
25HP 30HP
Application:
For YAMAHA 2 STROKE 30HP OUTBOARD MOTOR
REF | PART NO. | DESCRIPTION | REMARK |
1 | 69P-W0090-00-1S | CRANK CYLINDER ASSY | |
69S-W0090-00-1S | CRANK CYLINDER ASSY | ||
2 | 69P-15100-00-1S | CRANKCASE ASSY | |
3 | 90119-08009 | BOLT, WITH WASHER | |
4 | 90119-08M65 | BOLT, WITH WASHER | |
5 | 93606-12019 | PIN, DOWEL | |

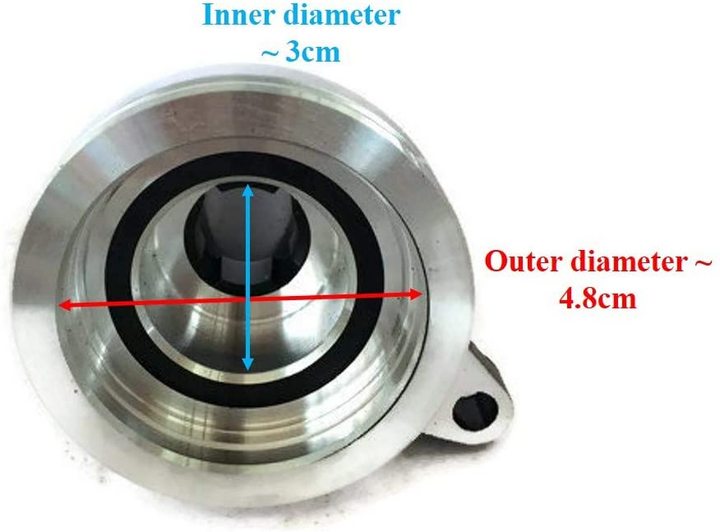

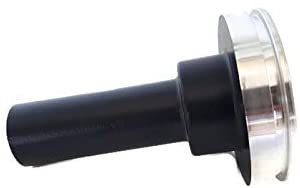

6 | 689-15396-01-5B | HOUSING, OIL SEAL | |
7 | 93102-25008 | OIL SEAL | |
8 | 93101-16001 | OIL SEAL | |
9 | 93210-58M21 | O-RING | |
10 | 97095-06022 | BOLT | |
11 | 92995-06600 | WASHER | |
12 | 6J8-11325-00 | ANODE | |
13 | 6H3-11327-00-94 | COVER, ANODE | |
14 | 6H3-11328-00 | GROMMET, ANODE | |
15 | 97013-06016 | BOLT | |
16 | 92903-06600 | WASHER, PLATE | |
17 | 689-11325-00 | ANODE | |
18 | 90151-06M02 | SCREW, COUNTERSUNK | |
19 | 61N-11111-01-1S | HEAD, CYLINDER 1 | |
20 | 676-11372-00 | .NIPPLE, HOSE | |
21 | 61N-11181-A1 | GASKET, CYLINDER HEAD 1 | |
22 | 61N-11191-01-1S | COVER, CYLINDER HEAD 1 | |
23 | 61N-11193-02 | GASKET, HEAD COVER 1 | |
24 | 90119-06MA2 | BOLT, WITH WASHER | |
25 | 90119-08015 | BOLT, WITH WASHER | |
26 | 6E5-12411-01 | THERMOSTAT | |
27 | 90201-21567 | WASHER, PLATE | |
28 | 655-12413-01-1S | COVER, THERMOSTAT | |
29 | 655-12414-00 | GASKET, COVER | |
30 | 90119-06MA2 | BOLT, WITH WASHER | |
31 | 6K8-41121-00-1S | INNER COVER,EXHAUST | |
32 | 6K8-41122-A1 | GASKET, EXHAUST INNER COVER | |
33 | 61N-41123-00-1S | OUTER COVER, EXHAUST | |
34 | 676-11372-00 | .NIPPLE, HOSE | |
35 | 90445-10M41 | HOSE (L105) | |
36 | 6K8-41124-A1 | GASKET, EXHAUST OUTER COVER | |
37 | 90119-06MA3 | BOLT, WITH WASHER | |
38 | 90119-06MA4 | BOLT, WITH WASHER | |
39 | 90119-06MA0 | BOLT, WITH WASHER | |
40 | 90201-50306 | WASHER, PLATE | |
41 | 689-45113-A1 | GASKET, UPPER CASING | |
42 | 94702-00217 | PLUG, SPARK (NGK B7HS-10) |
