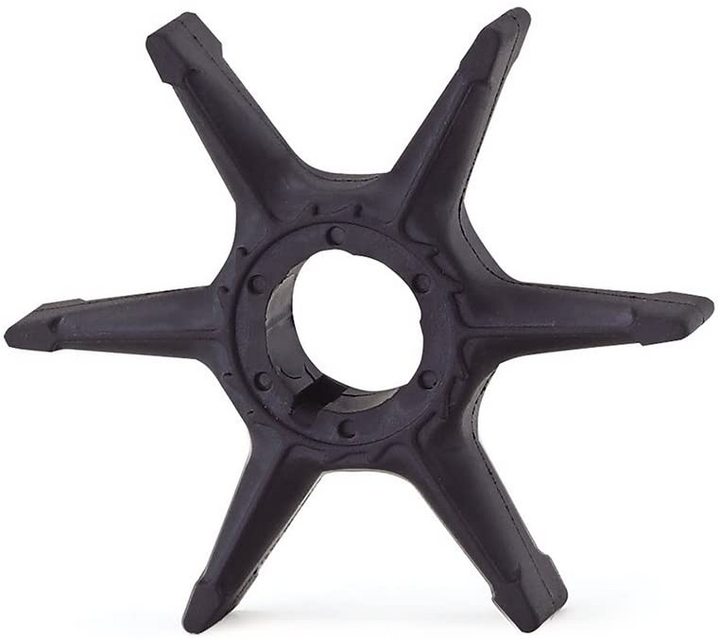

Impeller 689-44352-02-00 689-44352-02 03 47-81604M 47-84797M 47-89890 for Yamaha 25HP 30HP Outboard Motor Water Pump 25C 25D 30A

Quick Details

Type:

Vortex

Model Number:

689-44352-02-00

Place of Origin:

Zhejiang, China

1. Replacement:
This new Aftermarket impeller replaces Yamaha 689-44352-00-00 / 689-44352-03-00 / 689-44352-02-00;Mercury Mariner outboard engine
P/Ns: 47-81604M / 47-84797M / 47-89890 ; Sierra 18-3067 .

2. Impeller Dimensions :
Number of Blades: 6
Height: 13.02mm
External Impeller Overall Diameter: 68.52mm
Internal shaft insert Diameter : 16.03mm
Plastic Hub

Application:
(1)Yamaha outboard engines 2-stroke :

25hp & 30hp 2-Stroke 1984-87
CV25 (25hp) & CV30 (30hp) 2-Stroke 1989-90
C25 (25hp & C30 (30hp) 2-Stroke 1991-97
(2) Mercury Mariner outboard engines 2-stroke:
20HP 20C Mode Code
6A9 30HP 30A W30(W-MARATHON)
25HP 25C (through propeller exhaust)
28HP Mode Code 664
