Boat Engines 689-W0078-A6 689-W0078-06 Water Pump Repair Kit with Housing for Yamaha 25HP 30HP 18-3427 Sierra Mar

Quick Details

Model Number:

80689

Place of Origin:

Shanghai, China

Pump Parts & Accessries:

Impeller

Standard or Nonstandard:

Standard

Yamaha repair kit:

689-W0078-A6 689-W0078-04-00

hp:

25HP 30HP

AMIC MARINE:

80689

Water Pump Repair Kit 689-W0078-A6 689-W0078-04-00 for Yamaha 25HP 30HP

This is the water pump replacement/ repair kit for Yamaha # 689-W0078-A6 25/30 HP Outboard Motors.

Product Specifications:
Materials: The strongest marine and chemical corrosion resistant hardened nylon and scientifically engineered high performance neoprene rubber.
For Replacement of Yamaha OEM P/N: 689-W0078-A6 25/30 Horsepower
Item weight: Apprx. 280 g
Number of Impeller Blades: 6

The kit replaces part number 689-W0078-05, 689-W0078-06, 689-W0078-A6.
* 25 hp 1984 - 1987
* CV25 1990
* C25 1991 - 1997
* 30 hp 1984 - 1987
* CV30 1989 - 1992
* C30 1989 - 1992

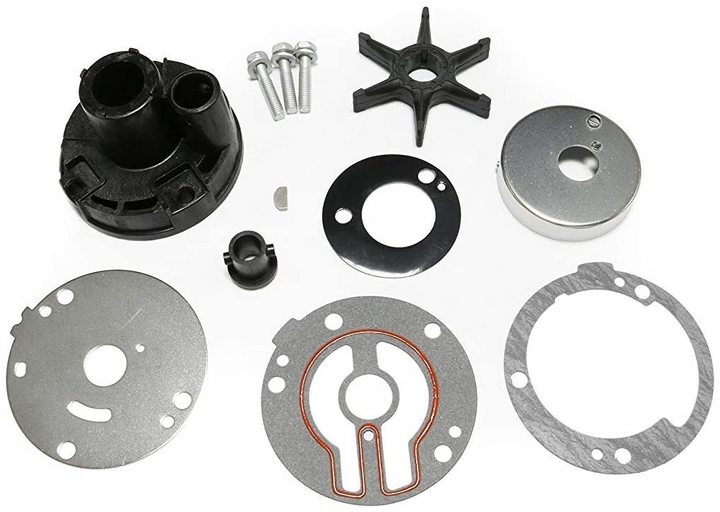

This service kit contains :

* 1 X 626-44365-01-00 Water Seal
* 1 X 689-44311-03-00 Pump Housing
* 3 X 97080-06030-00 Bolt with washer
* 1 X 689-W4432-02-00 Insert Cartridge
* 1 X 689-44323-03-00 Wear Plate
* 1 X 689-44324-A0-00 Gasket
* 1 X 689-44352-00 Candy Marine Impeller
* 1 X 689-44316-A0-00 Gasket
* 1 X 664-44338-00-00 Woodruff Key
