Water Pump Repair Kit for Johnson Evinrude 20/25/30/35 HP Outboard Replaces 393630

Quick Details

Model Number:

8393630

Place of Origin:

China

Pump Parts & Accessries:

Impeller

Standard or Nonstandard:

Standard

For OMC repair kit:

393630

hp:

20/25/30/35 HP

AMIC MARINE:

8393630

Water Pump Repair Kit for Johnson Evinrude 20/25/30/35 HP Outboard Replaces 393630

This is the water pump repair kit for JOHNSON EVINRUDE # 393630  20/25/30/35 HPOutboard Motors.

Application:

1980-2005 Years 20 -35 HP 2 Cycle. Cross flow engines with thru-prop exhaust and one-piece gear case.
20 HP 1985 and Up
25 HP 1985 and Up
25 HP Commercial 1998-2001
30 HP 1980 to 1982
30 HP (2 cycle) 1983 and Up
35 HP 1980 to 1982
35 HP (2 cycle) 1983 and Up

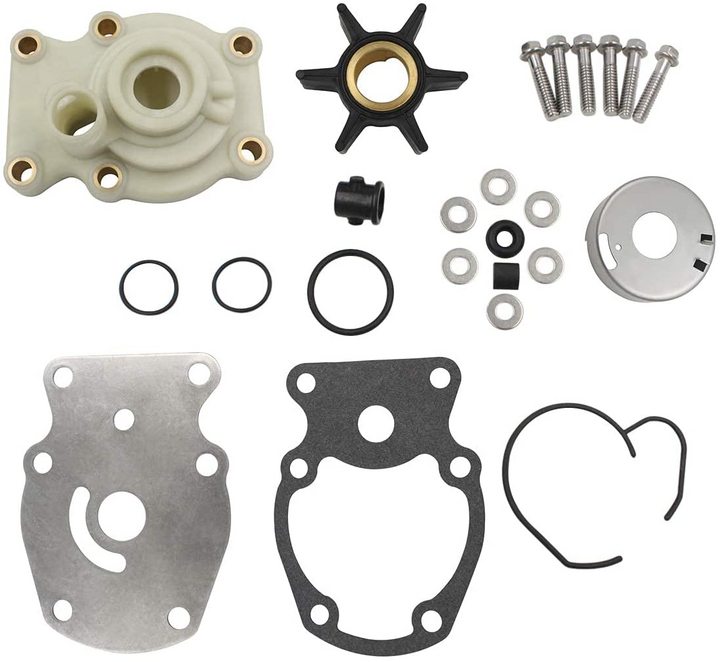

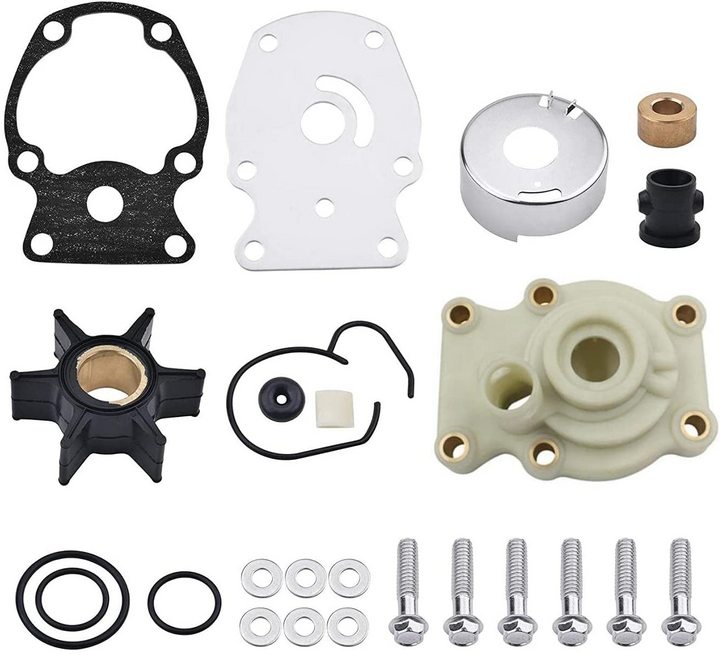

The kit contains:

1 X Candy Marine Neoprene Impeller OEM P/N #: 395289
1 X Impeller Key OEM P/N #: 330619
1 X Gasket OEM P/N #: 325537
1 X Wear Plate OEM P/N #: 328755
1 X Pump Cup OEM P/N #: 328751
1 X Pump Housing OEM P/N #: 393632
1 X Grommet OEM P/N #: 302497
1 X Brass Bushing OEM P/N #: 328754
4 X O-ring OEM P/N #: 311338 * 2 / For Bushing 301877 / 554545
1 X Sear OEM P/N #: 328753
6 X Bolt with Washer OEM P/N #: 324960 / 318452
