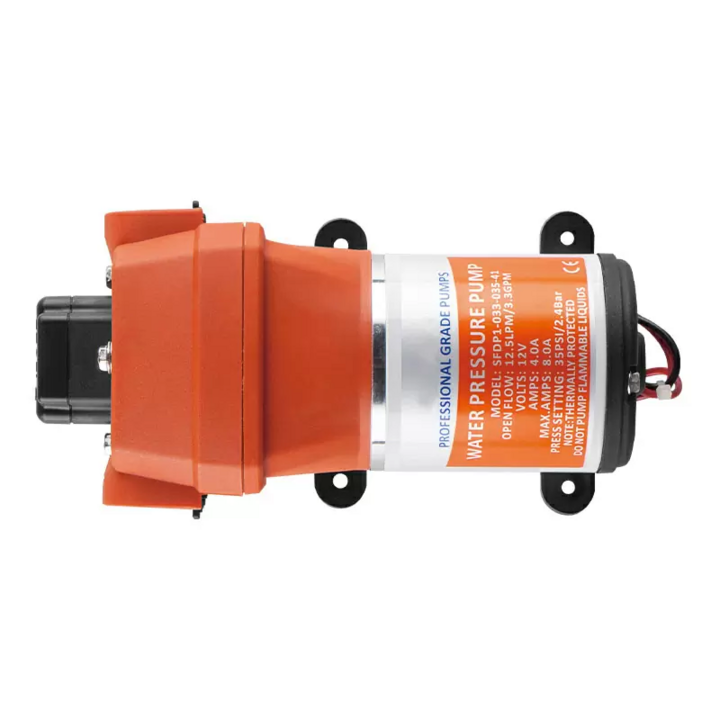

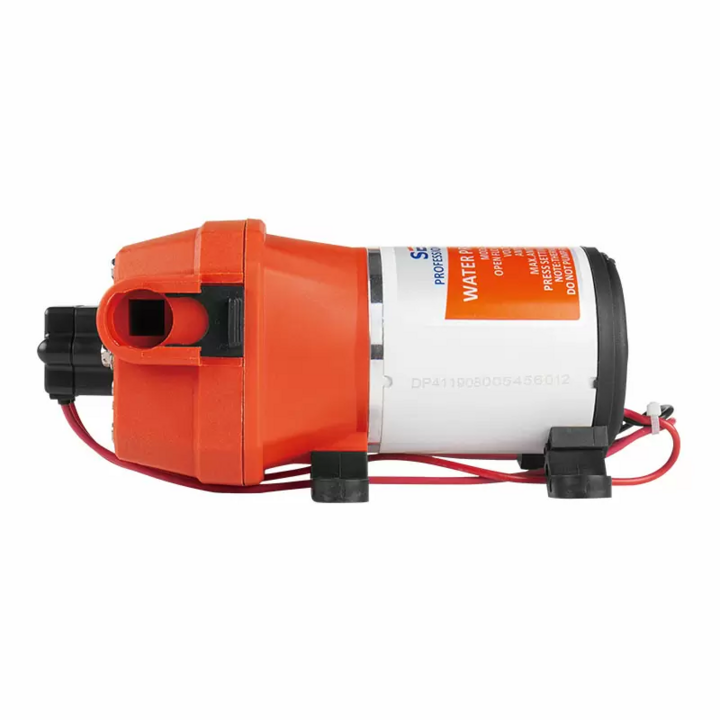

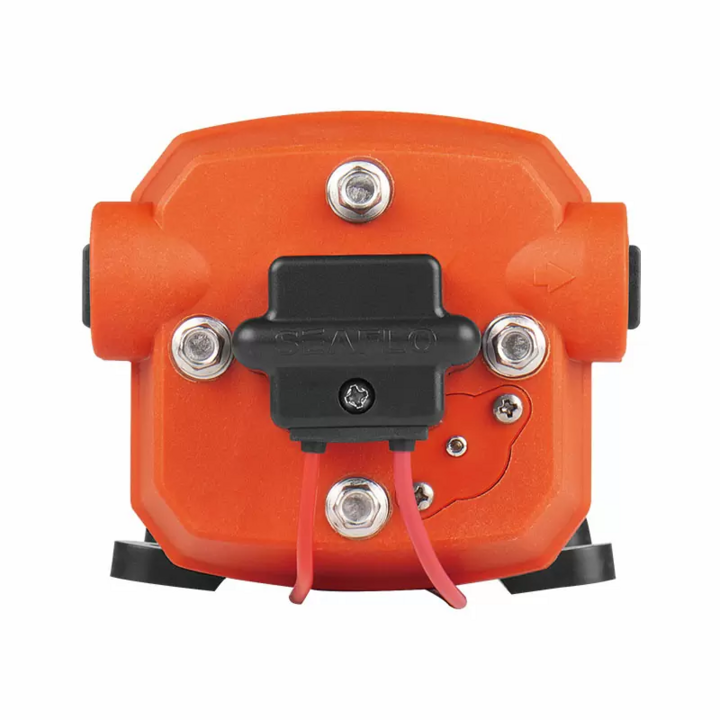

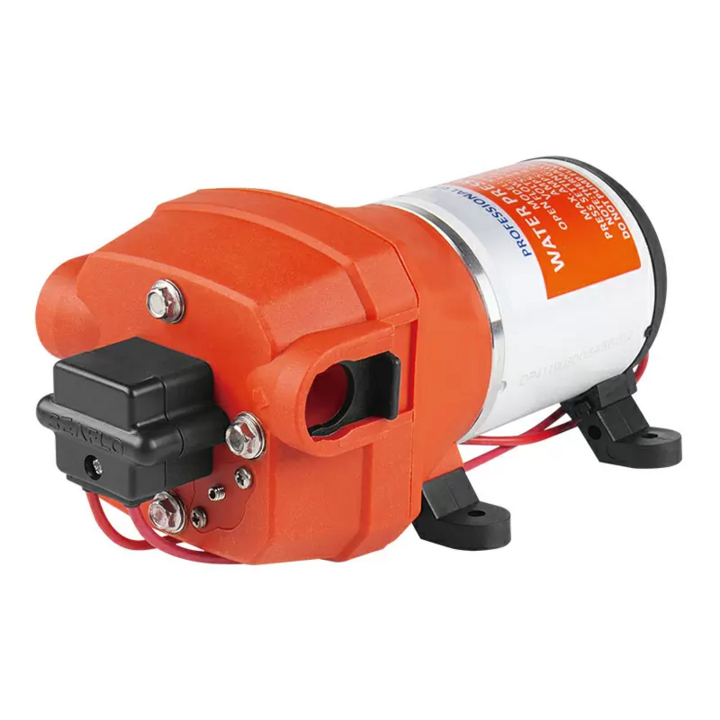

Diaphragm Pumps 41 Series-01

pump,yacht hardware
  • Boat Parts & Accessories

  • No price quoted.

Jiangsu Hailanxing Technology Company Ltd.
Jiangsu Hailanxing Technology Company Ltd.
  • Changzhou High-tech Industrial Park, Jiangsu Province

The 41-Series pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 3.3 gallons per minute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.?They're easy to install, service and winterize with quick?snap-in port fittings.


MORE FEATURES & BENEFITS


-Can supply up to 3 fixtures
-Quick connect fitting
-Self priming
-Run dry safe
-Can be use for Fresh&Salt Water
-16AWG,4.5"long Leads
-2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards


TYPICAL APPLICATIONS

Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System.


PUMP
Type4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control TypePressure switch & By pass control
Max Recommended Temperature60° C(140° F)
Priming Capabilities6 feet (1.8 m) suction lift
Re-start Pressure

Shut-off Pressure 17 PSI :9 PSI ± 5 PSI(± 0.3 bar)

Shut-off Pressure 35 PSI :25 PSI ± 5 PSI(± 0.3 bar)

Inlet/Outlet PortsQUICK ATTACH
Weight3.9 lbs (1.8 kg)


MOTOR
Leads16 AWG, 11" (28 cm) long with 2-Pin connector / Leads
Duty CycleIntermittent
Max.Amp Draw8.0 A
Fuse12.0 A
