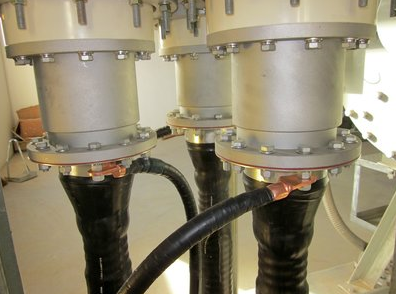

High voltage fully dry pluggable cable Terminal universal assembly Type B TG123-II-G

High voltage fully dry pluggable cable Terminal universal assembly
  • Boat Parts & Accessories

  • No price quoted.

Minnesota Mining and Manufacturing (3M)
Minnesota Mining and Manufacturing (3M)

It meets the requirements of IEC60840 and GB/T11017.3, as well as IEC62271 and GB/T22381 equipment connection standards


Using prefabricated stress cone, excellent silicone rubber material can provide large interference, ensure enough radial pressure of the interface, and have good creepage resistance


The metal outlet rod adopts a unique contact spring design, which can not only ensure close contact with the metal parts inside the epoxy sleeve, but also meet a large flow rate


The patented outlet rod is adopted to make installation more convenient


The insulation filler with unique formula can guarantee the stress cone surface and the inner wall of the epoxy sleeve to fill evenly, stick closely, and effectively prevent creepage along the surface


Tg123-ii dry pluggable cable terminal for connecting cable to GIS switchgear/transformer, suitable for cable systems with rated voltage 64/110kV and maximum voltage up to 126kV




3M TG123 II dry pluggable cable terminals are used to connect cables to GIS switchgear/transformers. The product adopts prefabricated stress cone for electric field control, which meets the test requirements of IEC60840 and GB/T11017.3, and also meets the equipment connection standards of IEC62271 and GB/T22381. The terminal is suitable for 64/110kV XLPE insulated metal sheathed cable.
