The electrical and mechanical properties meet the requirements of IEC60840 and GB11017 standards, and according to q-OAPB 260-2013 standards, the life and accuracy of the sensor part has been verified.
The body of temperature measuring joint adopts 3M SC123-II 110kV joint, which has mature technology and rich operation experience. The design safety life is more than 30 years
The built-in sensor does not contain semiconductor components that may fail or lose life at high temperatures to ensure the safe operation of the whole life cycle under high temperature operating conditions inside the joint
The core part of the sensor is encapsulated with special high temperature resistant materials, with long-term temperature resistance of more than 260OC and material decomposition temperature of more than 550OC.

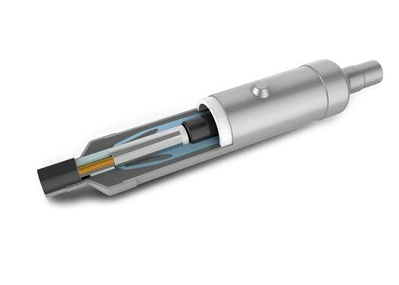

Sc123t-ii temperature measuring cable connector can measure the temperature of high voltage cable core conductor in real time, suitable for rated voltage 64/110kV, the highest voltage up to 126kV cable system
Sc123t-ii temperature measurement cable connector built-in passive temperature sensor, sensor and cable conductor close contact, can directly measure the cable conductor temperature. Through wireless transmission, the temperature signal is transmitted to the field device outside the joint body and can be connected to various types of field buses.
