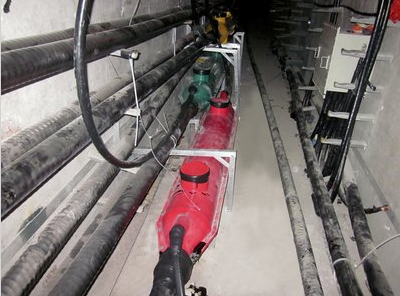

High pressure cold shrink middle nipple SS/SC123-II 800 mm square nipple

High pressure cold shrink middle nipple
  • Other Equipment & Accessories

  • No price quoted.

Minnesota Mining and Manufacturing (3M)
Minnesota Mining and Manufacturing (3M)

Meet IEC60840 and GB11017 standard requirements


Core cold shrinkage pre-expansion technology, time saving installation, labor saving, no special tools, suitable for a wide range of cable specifications.


Optimized stress cone electrical stress control and unique inner electrode shield design


Enhance insulation thickness and creepage distance to provide greater electrical desire


Composite copper bladder design, with excellent waterproof sealing performance


Sc123-ii cold shrinkage cable intermediate connector, suitable for rated voltage 64/110kV, the highest voltage up to 126kV cable system


3M SC123-II cold shrinkable cable intermediate connector fully meets the test requirements of IEC60840 and GB11017.3, prefabricated cold shrinkable silicone rubber body. It can be used for cross-connection or straight-through connection through different installation methods.
