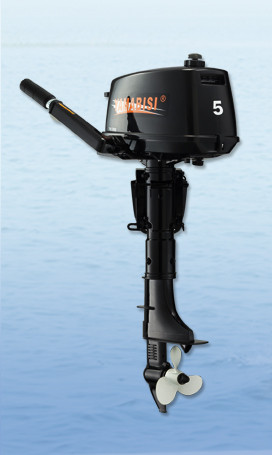

Yacht Engine
No price quoted.
No. 85, Jishui, Road, Jinqiao Industrial Park, Mudu Town, Suzhou 215102, Jiangsu, P.R. China.
| Parameter | measuring unit | Parameter value |
| Length | mm(in.) | 677(26.7) |
| Width | mm(in.) | 322(12.7) |
| Height | mm(in.) | 1011(39.8) |
| Transom height | mm(in.) | 444(17.50) |
| Net Weight | kgs | 19 |
| Full throttle operating range | r/min | 4000~5000 |
| Maximum output | r/min | 3.8(5)@5000 KW(HP)@ |
| Idling speed | r/min | 1100~1200 |
| Cylinder quanitity | 1 | |
| Displacement | ml | 99.0 |
| Bore×Stroke | mm(in.) | 54.0×43.0(2.13×1.77) |
| Control system | Tiller | |
| Starting System | Manual | |
| Gear positions | Forward-neutral-reverse | |
| Gear ratio | 2.08(27/13) | |
| Trim and tilt system | Manual tilt | |
| Fuel tank volume | L | 2.8 |
| Engine fuel ratio | gasoline:engine oil=50:1 | |
| Engine oil | L | / |
| Gear oil | ml | 100 |
| Propeller spec | in | 3-7 1/7"×7" |
