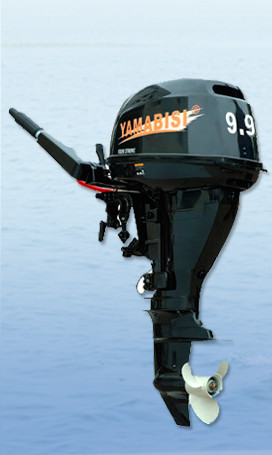

Yacht Engine
No price quoted.
No. 85, Jishui, Road, Jinqiao Industrial Park, Mudu Town, Suzhou 215102, Jiangsu, P.R. China.
| Parameter | measuring unit | Parameter value |
| Length | mm(in.) | 1001(39.4) |
| Width | mm(in.) | 427(16.8) |
| Height | mm(in.) | 1207(47.5) |
| Transom height | mm(in.) | 567(22.3) |
| Net Weight | kgs | 52.0 |
| Full throttle operating range | r/min | 4000~5500 |
| Maximum output | r/min | 7.3(9.9)@5000 KW(HP)@ |
| Idling speed | r/min | 900~1000 |
| Cylinder quanitity | 2 | |
| Displacement | ml | 323 |
| Bore×Stroke | mm(in.) | 59×59(2.32×2.32) |
| Control system | Tiller | |
| Starting System | Manual | |
| Gear positions | Forward-neutral-reverse | |
| Gear ratio | 2.08(27/13) | |
| Trim and tilt system | Manual tilt | |
| Fuel tank volume | L | 24 |
| Engine fuel ratio | / | |
| Engine oil | L | 1 |
| Gear oil | ml | 250 |
| Propeller spec | in | 3-91/4"×11" or3-91/4"×8" |
