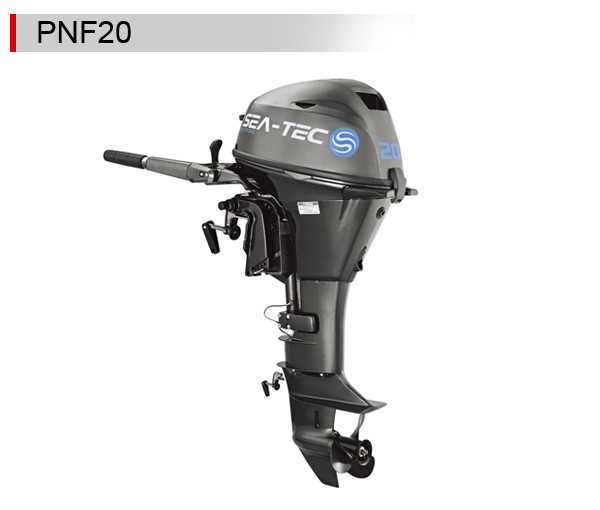

PNF20

Caracteristics PNF20

Moto type:2Cylinder
Displacement:362cc
Bore*Stroke:63×58.1mm
Compression ratio:9.30
Full  throttle speed range:20HP@5500rpm
Max.rpm Range:5000~6000
Fuel/Lnduction System:SOHC
Lntake:Carburetor
Exhaust:Through Proppeler
Cooling:Water/Thermostatic Control
Lgnition System:CDI Micro Computer
Alternator output:12V/10A
Starter:Manual/Electric
Engine Oil Capacity:1.8L/1.6L w/without filter
Gear Ratio:2.08
Gear Shift:Forward,Neutral,Reverse
Shaft Length:S=15" L=20"
Dry Weight(Kg.) 53.7Kg
Steering Angle(maximum):45° from center,either direction
Warranty:2-years Pleasure,1-year Commercial
