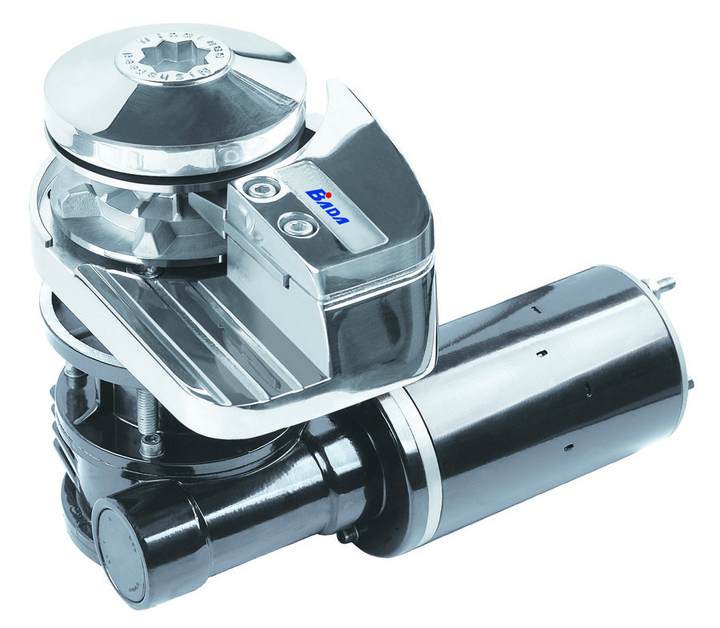

The C-series Heavy Duty Style Windlass
With parts above the deck made of high polished stainless steel 316. Powerful and compact windlass made specially for the rigid conditions of the sea. Suitable for the boat with adequate space under-neath deck and with deck thickness less that 50mm(2). With motor/gear underneath deck offers this model a very smooth and silent operation. Easy to vertically install, djustable clutch, works with chain only or rope/chain combination
Highspeed facility on all windlass models
Complete packages for pefect matching/perfotmance
BADA offers the complete windlass system
Model number C612 C912 Motor(W) 600 900 Voltage (V) 12 12 Current draw(A) 33 55 Max. working load (kgs/Ibs) 150/330 220~484 Max. power pull (kgs/Ibs) 450/990 66o~1452 Drop speed chain( m/min )/(ft/min) 26/85 40/131 Gypsy options Alt.1-Chain (DIN 766) 6mm 6 mm Alt.2-Chain/Rope (DIN766-HTG4) 7mm-1/4" 7mm-1/4" Rope (mm-Inches) Alt.2 12-1/2" 12-1/2 Weight (kgs/lbs) 9.1/20 9.1/20
