Windlass

Anchor winch,Winch,Windlass
  • Boat Parts & Accessories

  • No price quoted.

Bada Mechanical&Electrical Co.,Ltd.
Bada Mechanical&Electrical Co.,Ltd.

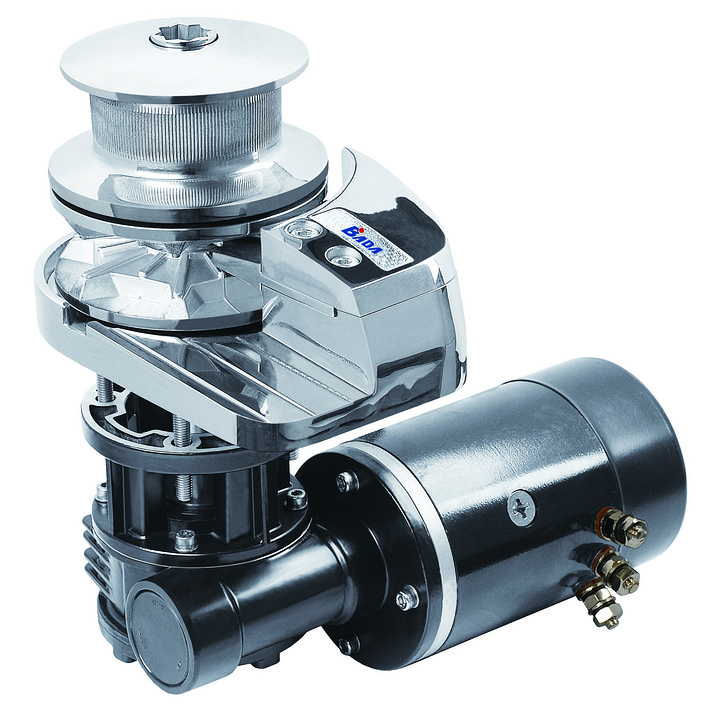

The C-series Heavy Duty Style Windlass
With parts above the deck made of high polished stainless steel 316. Powerful and compact windlass made specially for the rigid conditions of the sea. Suitable for the boat with adequate space under- neath deck and with deck thickness less that 50mm(2). With motor/gear underneath deck offers this model a very smooth and silent operation. Easy to vertically install, adjustable clutch, works with chain only or rope/chain combination

Highspeed facility on all windlass models
Complete packages for pefect matching/perfotmance
BADA offers the complete windlass system

Model number

C1012C

Motor(w)

1000

Voltage (v)

12

Current draw(A)

55

Max. working load (kgs/lbs)

250/550

Max. power pull (kgs/lbs)

750/1650

Drop speed chain(m/min)/(ft/min)

40/131

Gypsy options
Alt.1-Chain/Rope (DIN 766- HT G4)

7mm-1/4"

Alt. 2-Chain/Rope (DIN 766- HT G4)

8mm-5/16"

Rope (mm4nches) Alt.1

12-1/2"

Rope (mm-Inches) Alt.2

14-9/16”

Weight(kgs/lbs)

20.1/44.4
