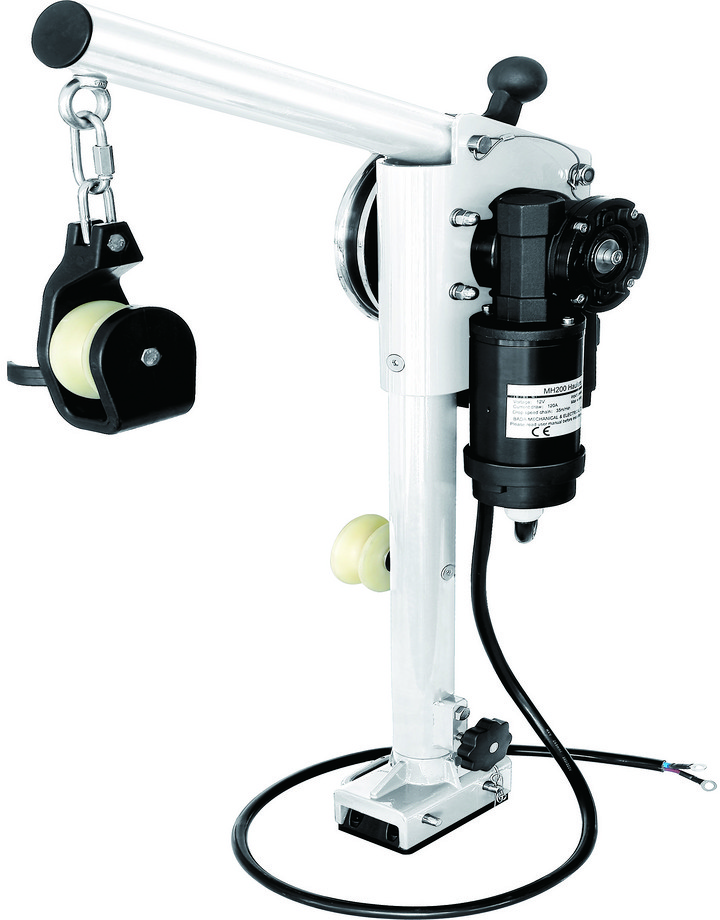

The Bada Line hauler Mh200 is the line of trap pullers are the most efficient,easy use and high
quslity crab and prawn trap haulers on the market,The one person operation takes the work out
of lifting traps up by hand,Powered by a Hi-Torque 12V Motor
Highspeed facility on all windlass modes
Complete packages for perfect matching/performance
BADA offers the complete windlass system
| Model number | MH200 |
| Motor (w) | 900 |
| Voltage(v) | 12 |
| Current draw (A) | 120 |
| Max .working load (kgs/lbs) | 18/400 |
| Max .power pull (kgs/Ibs ) | |
| Drop speed chain(m/min)/(ft/min) | 35/115 |
| Gypsy options | |
| Alt.1-Chain (DIN 766) | |
| Alt.2-Chain/Rope (DIN 766-HTG4) | |
| Alt.3-Chain/Rope (DIN 766-HT 4) | |
| Rope (mm-Inches) Alt.2 | 4-10mm(4/25"-3/8") |
| Rope (mm-Inches) Alt.3 | |
| Weight (kgs/lbs) | 13.7/30 |
