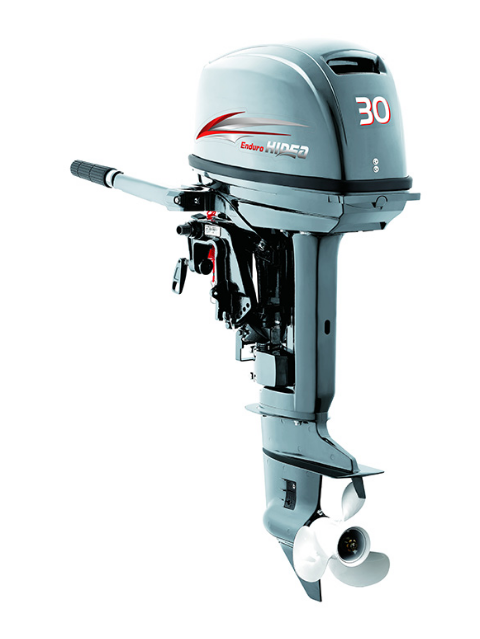

Yacht Engine
No price quoted.
No.126, Changda Road, Yuhang Economic and Technological Development Zone, Yuhang District, Hangzhou City, Zhejiang Province
Curves are specially hardened to enhance engine life. The starting wheel adopts German BASF material, the strength of the starting wheel is further strengthened. Underwater gear and bearing adopt foreign famous brand, greatly improve the underwater service life. Durability of electrical parts is improved. Specially designed for heavy duty propeller structure, suitable for long time use of fishing boats. Corrosion-resistant paint finish for high heat and salt fishing environment. Imported brand anode, more effective protection of underwater parts. The original equipment is provided, the maintenance is more economical, the use cost is lower.
Models： HD30F
Maximum power (kw)：22KW
Speed (RPM)：4500-5500
stroke：2
Cylinder block：2
Exhaust volume (cubic cm) ：496CC
Cylinder diameter x stroke (mm)：72x61
Length x width x height (mm) : short axis 843x399x1146
long axis 843x399x1273
Weight (kg)：S：54KG L：61KG
Gear ratio:27：13（2.08）
gear：Forward - neutral - reverse
The ignition system：CDI
The cooling system：Water cooled
Start system：manual/electric
control system：steering/Remote control
Lubrication system: gasoline & oil
Mixing ratio：50:1
Standard fuel tank (l)：24L
