Yacht Engine
No price quoted.
No.126, Changda Road, Yuhang Economic and Technological Development Zone, Yuhang District, Hangzhou City, Zhejiang Province
The main advantages:
1. Standard AC motors/lighting coils can be used with floodlights
2. Suitable for: rubber boat, FRP boat, aluminum alloy boat
3.CDI ignition provides maximum power from the lowest to the highest RPM range by pre-generating automatic sparks
4. Electromagnetic induction of cyclic charging can ensure smooth operation and fuel economy of the engine.
5. CE certification of Eu and CCS certification of China Classification Society

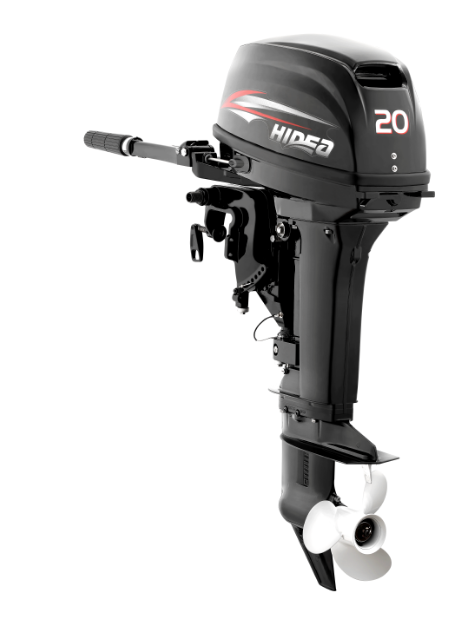

Models： HD20F
Power (kw)：14.7KW
Speed (RPM)：5200-5800
stroke：2
Cylinder block：2
Exhaust volume (cubic cm) ：326cc
Cylinder diameter x stroke (mm)：62x54
Length x width x height (mm) : short axis：873x332x1040
long axis： 873x332x1167
Weight (kg)： S：43KG L：48KG
Gear ratio:24：13（1.85）
gear：Forward - neutral - reverse
The ignition system：CDI
The cooling system：Water cooled
Start system：manual&electric
control system：steering&remote control
Lubrication system: gasoline & oil
Mixing ratio：50:1
Standard fuel tank (l)：24L
