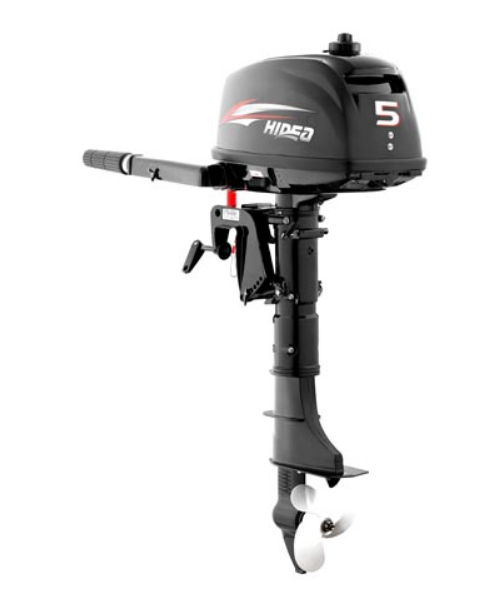

Outboard machine 5F

Main advantages:

1. Light weight, easy to carry, is the smallest model of double cylinder machine

2. With lighting coil, can use lighting lamp

3.CDI ignition is pre-generated and automatically sparks, providing the best power from the lowest to the highest RPM range.

4. Suitable for shoal navigation, used in rivers and shallow coves

5. CE certification of Eu and CCS certification of China Classification Society

Models： HD5F

Power (kw)：3.7KW

Speed (RPM)：4500-5500

stroke：2

Cylinder block：1

Exhaust volume (cubic cm) ：102cc

Cylinder diameter x stroke (mm)：55x43

Length x width x height (mm) : short axis：700x300x1010

                                            long axis：700x300x1137

Weight (kg)： S：20KG     L：21KG

Gear ratio:27：13（2.08）

gear：Forward - neutral - reverse

The ignition system：CDI

The cooling system：Water cooled

Start system：manual

control system：steering

Lubrication system: gasoline & oil

Mixing ratio：50:1

Standard fuel tank (l)：2.5L
