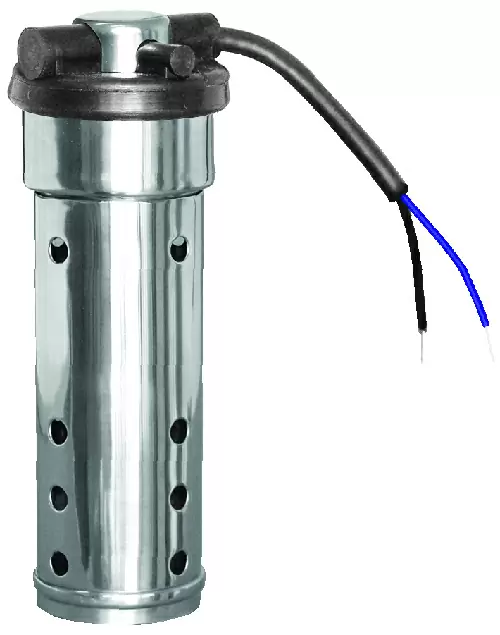

Level sensor OVG

Art No.JS65121

Length: 100mm

Voltage: 24V / 12V

Mounting: BSP 1 1/4" Thread

Gasket: NBR

Connector: NO

Length of Wire(Lc): 3030mm

Material: SUS316

Standard length is 4", length can also be customized. Rating working voltage can be 12V or 24V. Single core wire can be used, and pump switch can be operated manually.

This device is for detecting water level at the bottom of your boat, can also be used as a pump switch. It can be installed at the botom wherever is convenient. Adjustable bracket  is to fix the sensor in place and slight adjustment of height. The housing, which can be conveniently disassembled and cleaned, can prevent foreign particales from interfering with the float's movement.
