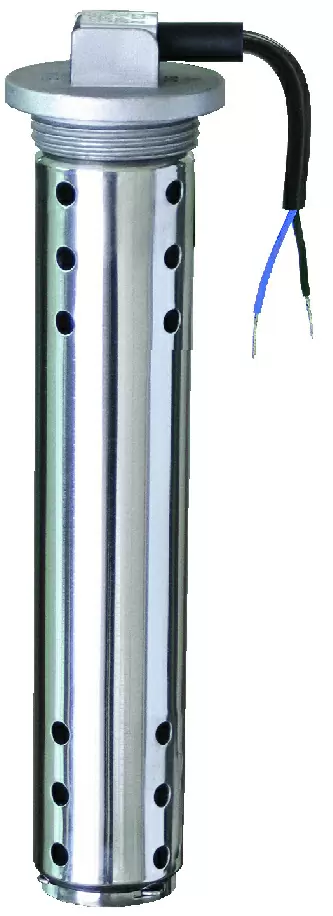

Level sensor S3H

sensor
  • Boat Parts & Accessories

  • No price quoted.

Jiangsu Hailanxing Technology Company Ltd.
Jiangsu Hailanxing Technology Company Ltd.
  • Changzhou High-tech Industrial Park, Jiangsu Province

Material: The main body is made of SUS316 or SUS304 stainless steel

Length range: 4", 6", 8", 12", 16". It also can be customized according to your requirements.

Assembly: BSP 1 1/4" thread screwing-in, or NPT thread screwing-in. Various types of flanges are available for fitting fuel tank is necessary.

Mounting:

38mm*2.6mm O-ring

43mm*3.5mm O-ring

The outer tube can be detached for easy cleaning


  • Utilizing magnetic field to control the reed on-off switch, the product features a long service life and protection against vibration

  • Rated Power: 125mW

  • Rated Current for alarm switch: 500mA

  • Wire: PVC material (PA corrugated pipe cover is optional)

  • Connector: Delphi, Tyco, or others are available according to customer's requirements

  • Output signal: Resistance control signal, 0 ~ 190 Ω, 240 ~ 33Ω, or customized as required; you can also choose current control signal, 0 ~ 20mA, 4 ~ 20mA or Voltage control signal 0.5 ~ 4.5 VDC, 0 ~ 5 VDC

  • Resolution range: 10 ~ 40 mm

  • Operating temperature: -40°C ~ +85°C
