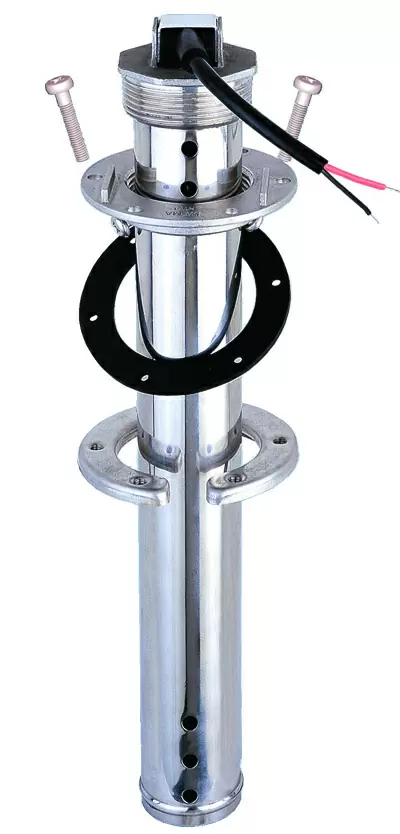

Level sensor SHS

sensor
  • Boat Parts & Accessories

  • No price quoted.

Jiangsu Hailanxing Technology Company Ltd.
Jiangsu Hailanxing Technology Company Ltd.
  • Changzhou High-tech Industrial Park, Jiangsu Province

Uses: Mainly used in black water or grey water tanks. Can also be used in fresh water tanks.

Material: The main body is made of SUS316 or SUS304 stainless steel

Length range: 4", 6", 8", 12", 16", 20", 30". It also can be customized according to your requirements.

Mounting: NPT 1 1/2" thread twist-in, with standard 6 hole thread flange plate, standard 6 hole under ring and 6 piece of M5*30 threads

Using NPTthread to fix and seal the sensor and flange, with addition of Teflon tape belts to seal if necessary.

Protection rank: IP67

  • Utilizing magnetic field to control the reed on-off switch, the product features a long service life and protection against vibration

  • Rated Power: 125mW

  • Rated Current for alarm switch: 500mA

  • Wire: PVC material (PA corrugated pipe cover is optional)

  • Connector: Delphi, Tyco, or others are available according to customer's requirements

  • Output signal: Resistance control signal, 0 ~ 190 Ω, 240 ~ 33Ω, or customized as required; you can also choose current control signal, 0 ~ 20mA, 4 ~ 20mA or Voltage control signal 0.5 ~ 4.5 VDC, 0 ~ 5 VDC

  • Resolution range: 10 ~ 40 mm

  • Operating temperature: -40°C ~ +85°C
