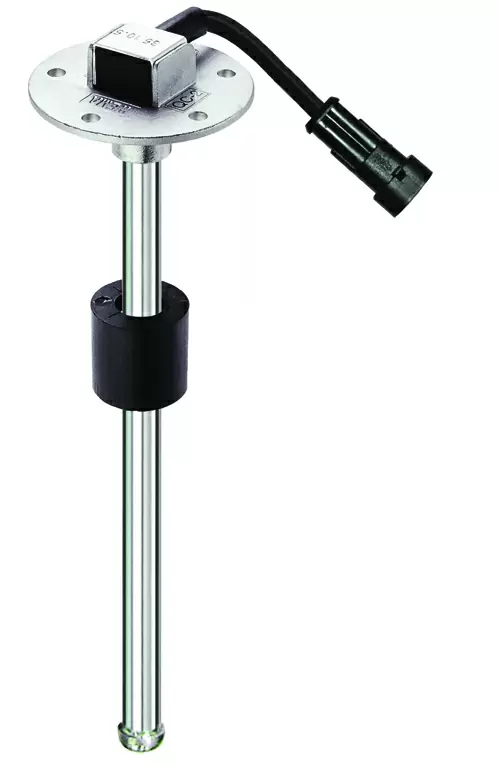

Level sensor S5

Material: The main body is made of SUS316 or SUS304 stainless steel

Length range: 100 ~ 2000mm. It also can be customized according to your requirements.

Mounting:  SAE standard 5 holes, other mounting methods available.

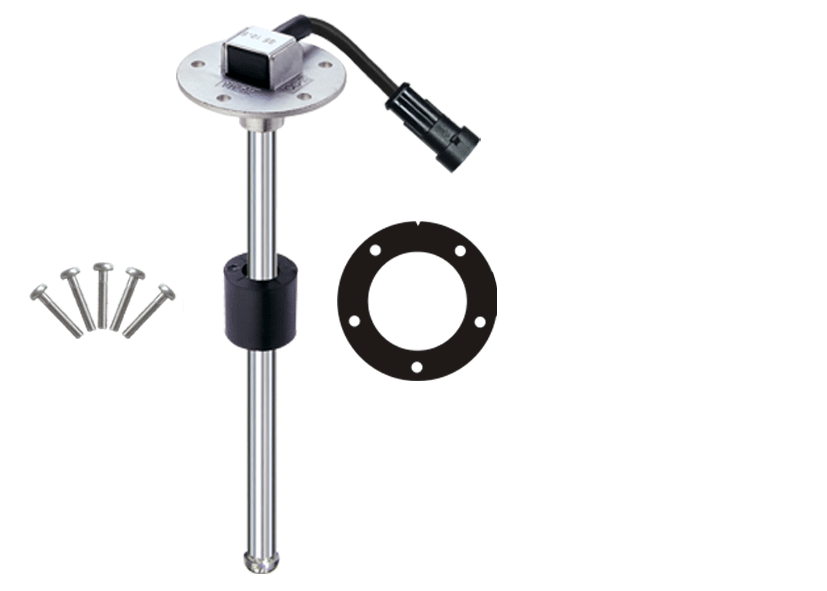

Accessories:

-5 x M5 screws

-2mm thick NBR gasket

If installing on a gas tank, we recommend the optional 2mm thick FPM gasket

Protection rank: IP67

• Utilizing magnetic field to control the reed on-off switch, the product features a long service life and protection against vibration

• Rated Power: 125mW

• Rated Current for alarm switch: 500mA

• Wire: PVC material (PA corrugated pipe cover is optional)

• Connector: Delphi, Tyco, or others are available according to customer's requirements

• Output signal: Resistance control signal, 0 ~ 190 Ω, 240 ~ 33Ω, or customized as required; you can also choose current control signal, 0 ~ 20mA, 4 ~ 20mA or Voltage control signal 0.5 ~ 4.5 VDC, 0 ~ 5 VDC

• Resolution range: 10 ~ 40 mm

• Operating temperature: -40°C ~ +85°C
