Operating Voltage : 8 ~ 32 V with polarity protection
conducting current: < 50mA
Operating temperature: -40 ~ 85°C / -40 ~ 185 °F
Ouput signal: Square wave
Signal duty factor: 47±5%
Inductance distance: <= 2mm
Connection method: three or four wires connection

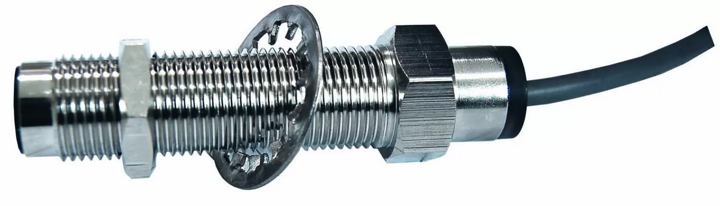

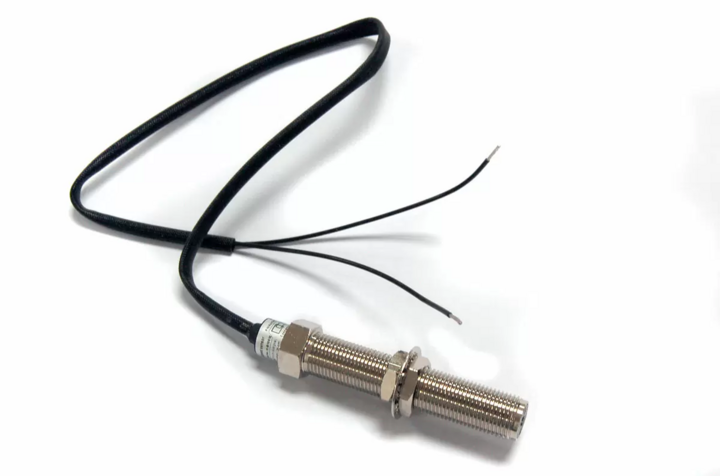

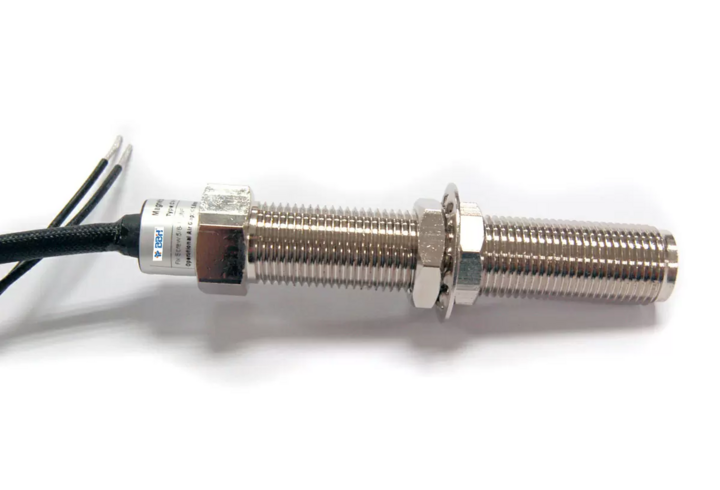

Used for measuring gear rotation speed. Its main advantages include stable signal output, wide range of operational temperature, small size, and simple assembly process.
It covers a wide range of measurements, including zero rotation speed.
The shell appearance, material and thread fitting can be customized as required.
Protection rank: IP65
