Easy installation for limited space

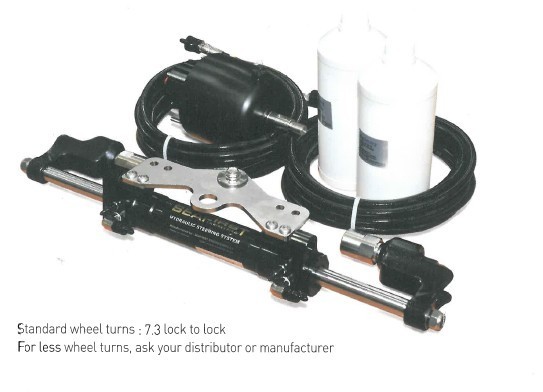

Standard wheel turns:7.3 lock to lock
For less wheel turns, ask your distributor or manufacturer
Steering kits includes
Model:NSH 018 Helm Pump
Description:Front Mount Helm pump 18cc
Model:SOC 3520V type Cylinder
Description:Front Mount Outboard cylinder. When ordering, specify the engine model.
Model:SF OIL 15 Hydraulic Oil
Description:Hydraulic oil 1 liter x 2 bottles. SAE NO15.
Model:NH 04-SS-06 HYDRAULIC Hose
Description:Hydraulic Hose 6 meter x 2pcs
Model:Accessories included
Description:Helm pump fittings, Helm pump mounting hardware kit. Accessories kit OAK-100 (Bleed tube, Funnel, Oil supply tube)
The Steering Wheel is not included in the package.
Application Guide - Single Engine
System Model:MO 350V - Y1
Applicable Outboard Moters:Yamaha 4stroke: From 75hp to 350hp
Yamaha 2stroke: From 100hp to 250 hp
Suzuki 4stroke: From 70hp to 300hp
Cylinder:SCO 3520V-Y1
System Model:MO 350V - H1
Applicable Outboard Moters:Honda 4stroke: From BF 70 to BF 250
except old 130hp and BF 115A(carburettor)
Cylinder:SOC 3520V-H1
System Model:MO 350V - Y4
Applicable Outboard Moters:Yamaha 4stroke: From 30hp to 60hp
Yamaha 2stroke:From 50hp to 95hp
Cylinder:SOC 3520V-Y4
System Model:MO 350V - H5
Applicable Outboard Moters:Honda 4stroke: BF 115A carburettor (old) and BF 130A (old)
Cylinder:SOC 3520V-H5
