Yacht Engine
No price quoted.
Second Floor, Building 6, Dazhou Industrial Zone, Shijie Town, Dongguan City, Guangdong Province

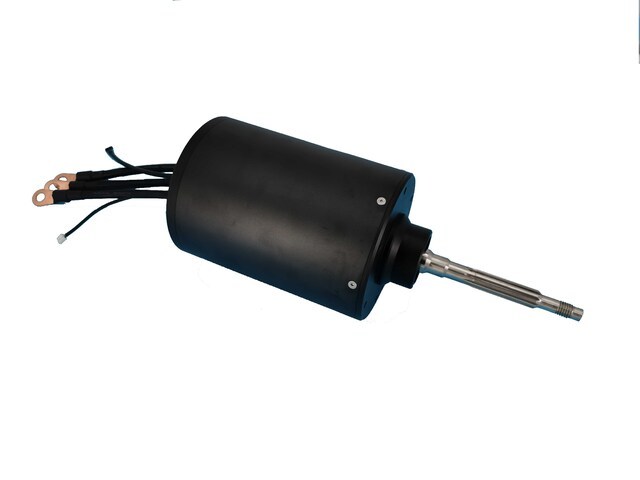

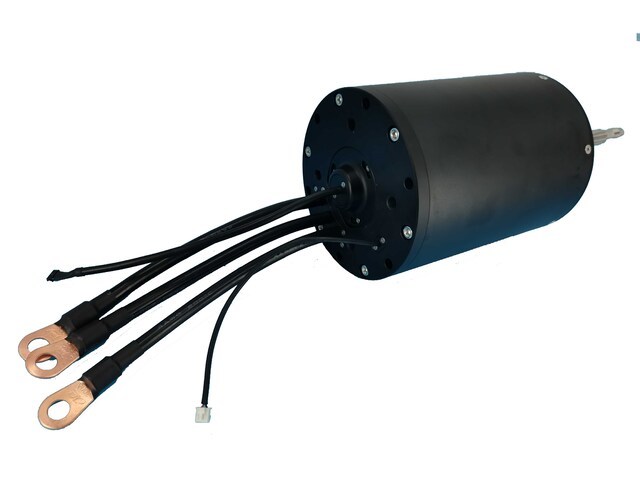

Model (model P/N)： D155L210-95 D155L210-76 D155L210-63 D155L210-54 D155L210-48
Number of turns (Turn) ：2T 2.5T 3T 3.5T 4T
(Voltage range)： 8-16S (26-67.2V) 10-20S (35-84V) 10-24S (37-100.8V) 14-28S (51.8-117.6V) 14-32S (51.8-134.4V) )
Max Spin Speed) (RPM)： 6384 6384 6350 6350 6451
Speed constant kV(RPM/V)： 95 76 63 54 48
Torque constant Kt(N*M/A) ：0.1088 0.1328 0.1632 0.1882 0.215
No-load current @8.4V(Current @8.4V without Loading)(A)： 5.3 4.3 3.5 3 2.7
Maximum output power (Max Power) (KW) ：45 46 46 45 45
Maximum working current (Peak current) (A)： 1000 800 670 580 500
Effeciency： 89% >89% 90% 91% 91%
Maximum output torque (max torque@60%)(N*M)： 69 71 73 72 71
Rated power @ benefit 80% (Rating Power) (KW) ：26 26 26.6 26 26
Rated Torque @ Benefit 80% (Rating Torque @ 80%) (N*M) ：52 53 52 51 51
Weight (KG) ：16.9 16.4 16.7 16.3 16.8
