Yacht Engine
No price quoted.
Second Floor, Building 6, Dazhou Industrial Zone, Shijie Town, Dongguan City, Guangdong Province

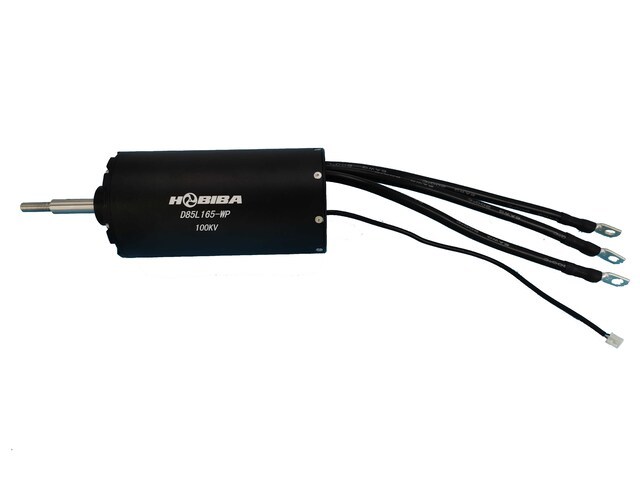

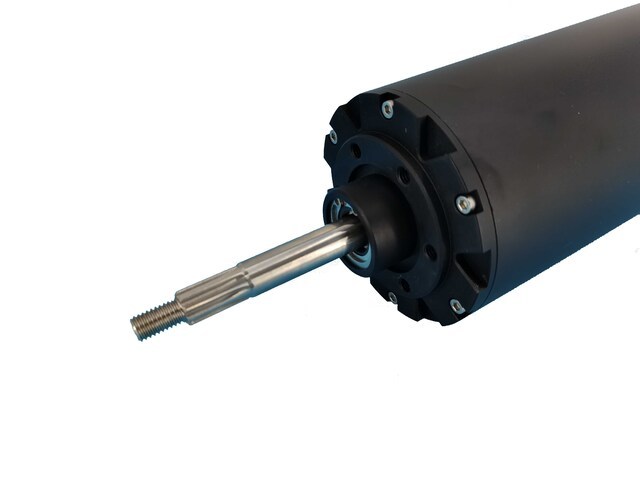

Model (model P/N) ：D85L165-143 D85L165-95 D85L165-72 D85L165-240 D85L165-160
Coil number and winding method (winding turn & connection) ：2T-Y 3T-Y 4T-Y 2T-D 3T-D
Working voltage range (LiPO/voltage Range)： 6-18S (20-75.6V) 12-28S (40-117.6V) 18-36S (60-151.2V) 6-12S (20-50.4V) 8-16S (28 -67.2V)
Maximum number of revolutions (Max RPM)： 10810 11172 10886 12096 10752
Speed constant kV (RPM/V)： 143 95 72 240 160
Torque constant Kt(N*M/A)： 0.1111 0.1667 0.2222 0.0666 0.1
No-load current @8.4V (Current @8.4V without Loading) (A)： 3.9 2. 5 2.1 5.3 4.5
Maximum output power (Max Power) (W) ：10800 11776 11500 11000 12000
Peak current (A) ：380 330A 285 230 190
Effeciency 87% 87.0% 88% 89% 89%
Maximum output torque (max torque@60%) (N*M)： 26 26.8 27.5 25.3 24.8
Rated power @ benefit 80% (Rating Power) (KW)： 13.8 14.5 15.9 15.4 15
Weight (kg) ：3.9 3.85 3.76 3.87 3.8
