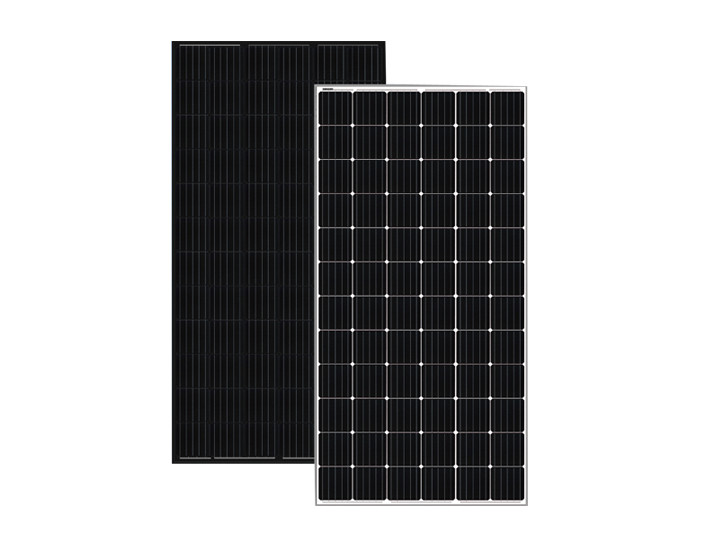

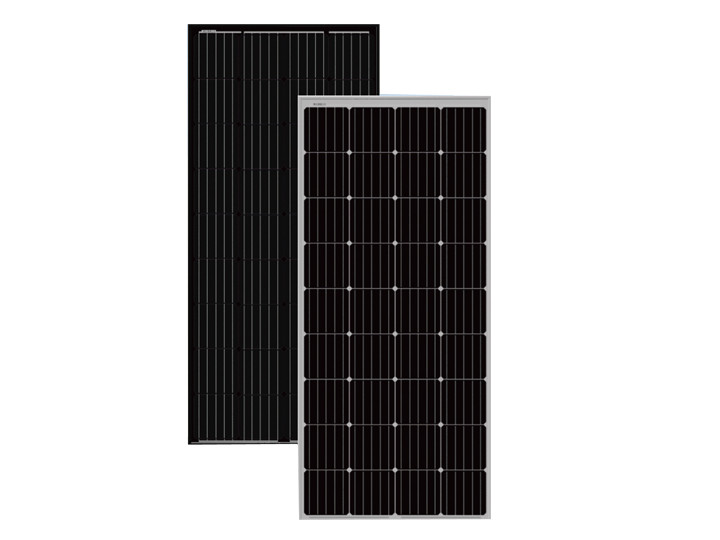

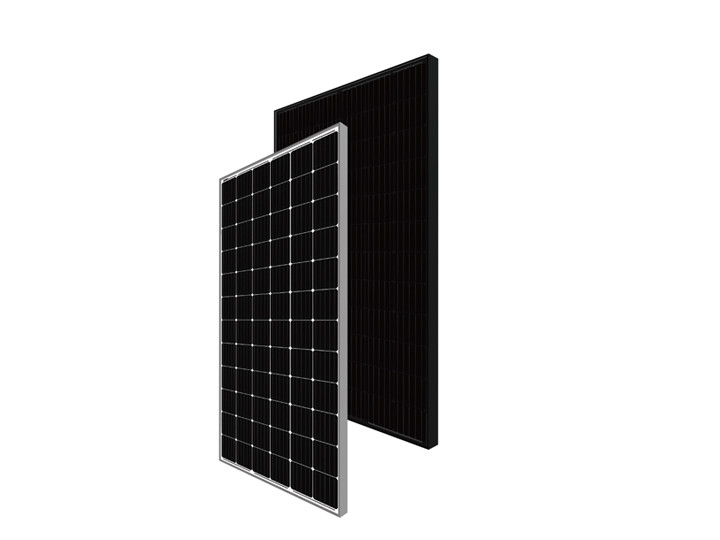

150-180 Watt

Peak power           Pmax(W)
150 155 160 165 170 175 180
Power difference           Pmax(%)
0~+3 0~+3 0~+3 0~+3 0~+3 0~+3 0~+3
Peak working voltage         Vmp(V)
18.11 18.12 18.13 18.14 18.15 18.16 18.17
Peak working current         Imp(A)
8.28 8.55 8.83 9.10 9.37 9.64 9.91
Open circuit voltage           Voc(V)
23.14 23.15 23.16 23.17 23.18 23.19 23.20
Short circuit current           Isc(A)
8.69 9.01 9.32 9.54 9.84 9.92 10.23
Cell efficiency          (%)
17.70 18.30 18.90 19.50 20.10 20.70 21.30
Component efficiency           (%)
15.10 15.60 16.10 16.60 17.10 17.60 18.20
Standard test conditions (STC)
The battery temperature is 25℃, the irradiance is 1000W/㎡, and the air quality is AM1.5.
