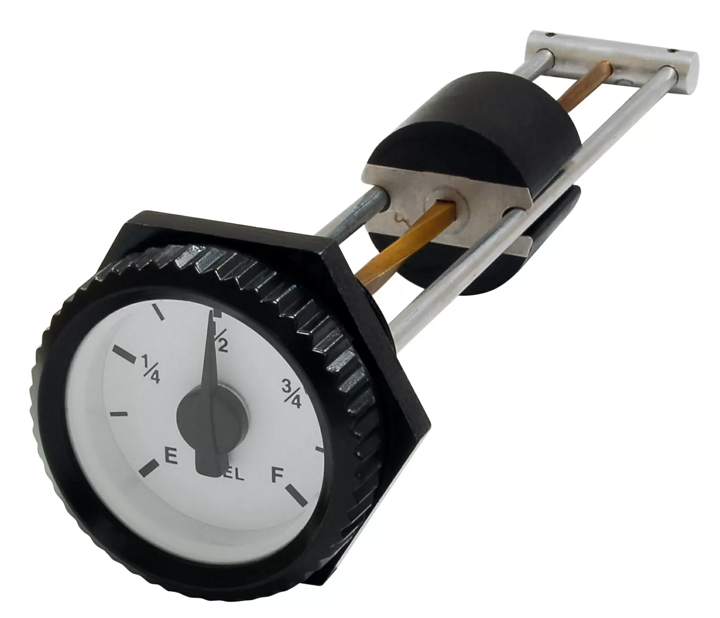

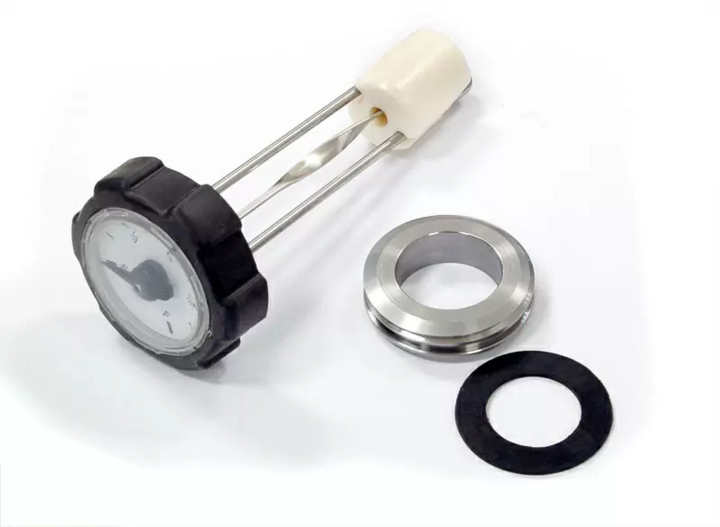

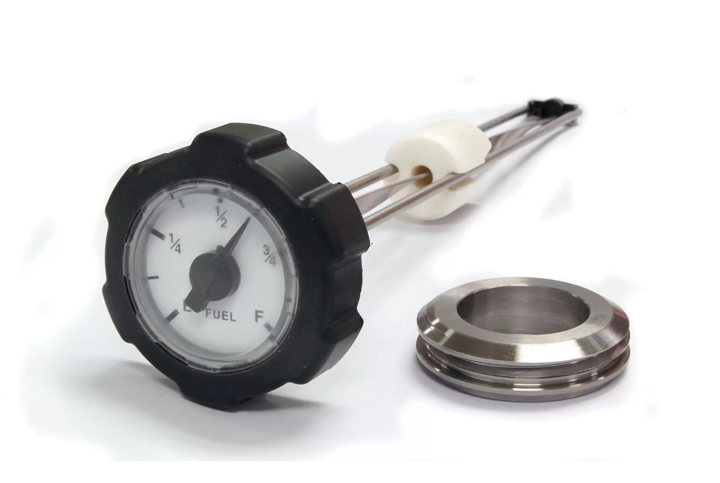

Mechanical Gauge

Operating temperature: -40 ~ 85°C  / -40 ~ 185 °F

Integrated precision: 5%

Main material: Aluminium alloy

Thread fitting: M45x2 or BSP 1 1/2

Flange (Optional): Standard 6-hole welding flange

Screwing torque: 300 ~ 400 N.m

Length range: 120 ~ 700mm

Alarm switch: Optional high or low alarm switch can be set at 9/10 or 1/10 level. Alarm current is < 500mA. The alarm point can be set at the level of 9/10 and 1/10.

The mechanical gauge integrates the function of level measuring and level display directly without power supply. High and low alarm function can be added to the gauge according to customer requirement.

This gauge largely applies to fuel tanks of generators and engines. It also applies to water tanks. Not recommended for vehicles.
