No price quoted.
Meet the test requirements of IEC60840 and GB11017.3, and IEC61000 electromagnetic shielding test requirements
Professional cold shrinkage pre-expansion technology, time saving installation, labor saving, no special tools, suitable for a wide range of cable specifications.
The built-in temperature sensor is directly close to the conductor and can truly reflect the temperature of the conductor, which is helpful to predict faults and reflect load changes
Using wireless technology, the signal can be effectively transmitted without affecting the electrical performance of the high voltage part.
Patented wireless passive temperature sensor can ensure long-term and stable temperature collection without additional power supply

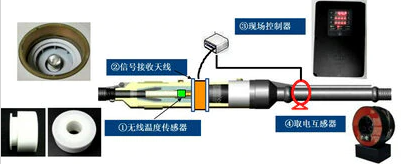

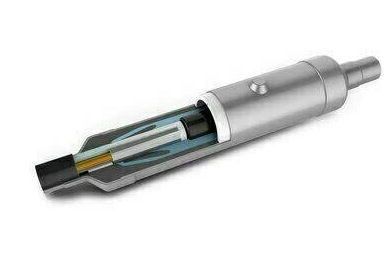

3M SC123T-II temperature measuring 110kV intermediate connector, including 3M general cable connector and temperature detection device two parts. The general cable joint uses silicon rubber material as the main body of electrical stress control, which can effectively ensure good electric field control and electrical connection. The temperature detection device adopts built-in wireless passive temperature sensor, plus wireless transceiver antenna and field controller, which transmits the internal temperature of the joint through wireless mode, and displays the temperature on the spot through the controller and transmits it to the background server for recording and analysis
