No price quoted.
Large cold shrinkage expansion rate (> 200%) and low permanent deformation rate (less than 8%)
The large cold shrinkage expansion rate ensures that the intermediate joint provides constant and persistent radial pressure to the cable body
Safe and reliable operation under long-term flooding conditions
Low shrinkage temperature: the minimum shrinkage temperature is 70℃, and the complete shrinkage temperature is 125℃
The unique waterproof process of the wire core makes the moisture and moisture in the cable core not enter the main insulation interface of the intermediate joint due to external reasons, which effectively inhibits the generation and development of water branches and improves the electrical performance of the composite interface
Special armor belt recovery jacket provides high strength mechanical protection for easy installation

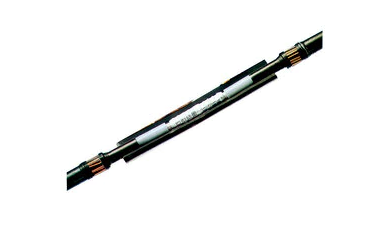

3M QS1000-W series cold shrinkage waterproof enhanced cable middle connector series is suitable for 8.7/15kV cable, the cable cross section can be from 50 to 500mm2. Qs1000-w series cold shrink middle head conforms to VDE 0278, CENELECHD 629.1 standard and China gb GB12706.4 requirements. In addition to ensuring sufficient interfacial pressure on the main insulation surface of the cable, the waterproof sealing performance of the core inside the joint is increased. This will greatly reduce the probability of intermediate joint failure due to water inlet due to external or cable causes.
