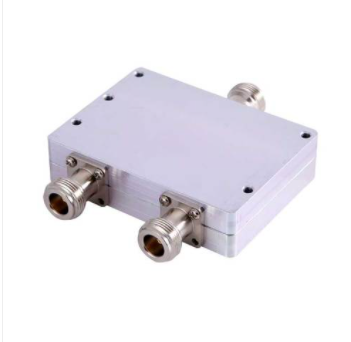

Power dividers

Power divider wireless intercom system：

Power divider for short has two power divider, three power divider, four power divider and so on, which is used for the branch of cable in the system. The equal ratio distribution of output port signal is installed in the weak bridge. The high power divider can withstand 150W maximum power. There is a standard distribution ratio in FM, 150,350,400 and 800MHz. The port output is evenly distributed at this frequency, and the index is better.

Frequency range ：88-108 / 136-174 / 350-390 / 400-470 / 800-900MHz500

Impedance：50Ω

Standing wave ratio：≤ 1.3

Insertion loss：≤3.3

Isolation：≥ 20dB

Power capacity：150W

Working humidity ：-40C ~ + 70C

Interface：N-type mother head
