Yacht Engine
No price quoted.
No.126, Changda Road, Yuhang Economic and Technological Development Zone, Yuhang District, Hangzhou City, Zhejiang Province
HDF15 advantages:
1. With timer, more convenient maintenance
2. Streamlined design
3. Large capacity lubricating oil storage tank to make more lubrication
4. Large size AC motors and rectifiers can continuously charge the battery
5.ECM ignition system, quick start, smooth acceleration
6. Low fuel consumption, low noise, strong motion
7. CE certification of Eu and CCS certification of China Classification Society

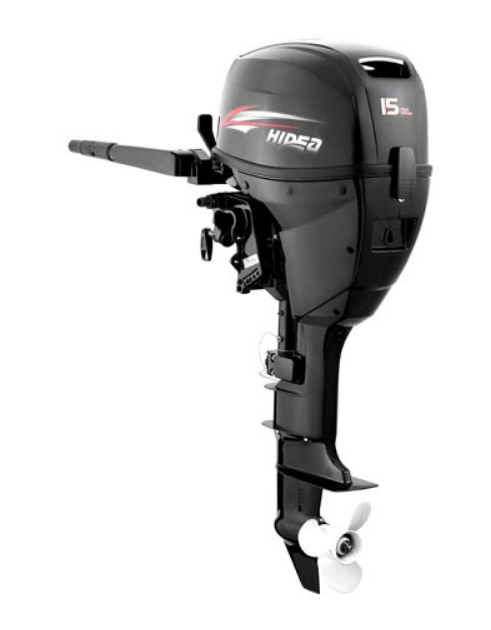

Models： HDF15
Power (kw)：11KW
Speed (RPM)：4500-5500
stroke：4
Cylinder block：2
Exhaust volume (cubic cm) ：345cc
Cylinder diameter x stroke (mm)：61x59
Compression ratio: 9.9:1
Length x width x height (mm) : short axis 1000x427x1080
long axis 1000x427x1207
Weight (kg)：S：53.4KG L：54.4KG
Gear ratio:27：13（2.08）
gear：Forward - neutral - reverse
The ignition system：ECM
The cooling system：Water cooled
Start system：manual&electric
control system：steering&remote control
Standard fuel tank (l)：12L
