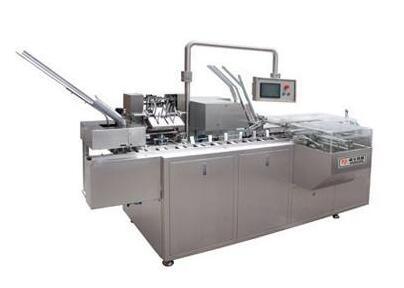

"Carton packing machine with upper-opening lid is suitable for packing aluminum-plastic plates of medicines, round bottles, heteromorphic bottles, food, school supplies, health care products, toys, cosmetics, auto parts, toothpaste, paper towels, office supplies, hardware, household paper, poker and other similar items etc. It can automatically complete the work of folding instructions, opening cartons, packing items, printing batch numbers, sealing boxes, etc. The machine is PLC-controlled, and uses photoelectric equipment to monitor the actions of various parts, and automatically scraps unqualified articles during operation. If there is any abnormality, it can automatically stop operating and display the reasons, so as to eliminate the fault in time. The machine can be used alone, and can also be used in conjunction with blister packaging machine and its hot sol device or other equipment to form a complete set of production lines
Technical parameter
Power: Ac380v, three-phase four-wire, 50HZ
Gross power: 1.5KW
Production capacity: The running speed of the main body is 30-100 boxes/min
The running speed of the folder is 30-100 boxes/min
Gas consumption: 20m3/h (Pressure: 0.5-0.7mpa)
Packaging materials: Carton mass; 250-450g/m2 (depending on the size of the carton)
Specification: Maximum dimension(LxWxH) 250x170x90mm
Minimum dimension: (LxWxH)50x20x15mm
Manual: Paper mass 55-65g/m2
Specification: Maximum dimension (LxW)260x190mm
Minimum dimension: (LxW)100x100mm
Overall dimension: 3300x1350x1650mm
Weight: About 1.2 tons
