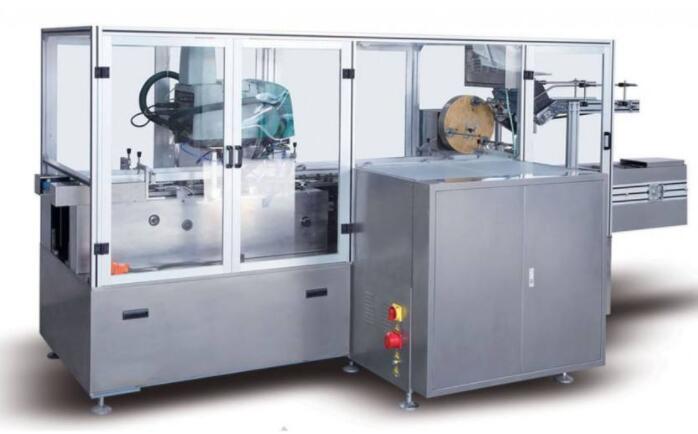

"High-speed packing machine is suitable for packing aluminum-plastic plates of medicines, round bottles, heteromorphic bottles, food, school supplies, health care products, toys, cosmetics, auto parts, toothpaste, paper towels, office supplies, hardware, household paper, poker and other similar items etc. It can automatically complete the work of folding instructions, opening cartons, packing items, printing batch numbers, sealing boxes, etc.
The machine is PLC-controlled, and uses photoelectric equipment to monitor the actions of various parts, and automatically scraps unqualified articles during operation. If there is any abnormality, it can automatically stop operating and display the reasons, so as to eliminate the fault in time. The machine can be used alone, and can also be used in conjunction with blister packaging machine and its hot sol device or other equipment to form a complete set of production lines
Specification: Maximum dimension(LxWxH) 250x170x90mm
Minimum dimension: (LxWxH)50x20x15mm
Manual: Paper mass 55-65g/m2
Specification: Maximum dimension (LxW)260x190mm
Minimum dimension: (LxW)100x100mm
Overall dimension: 3300x1350x1650mm
Weight: About 1.2 tons
Main performance and structural characteristics:
1. It has the functions of automatic box opening (suction), folding instructions, blanking, feeding, batch number printing, box sealing, waste detection and other processes, with stable operation and less noise.
2. PLC and man-machine interface are used to automatically control the operating system. It is equipped with continuously variable frequency modulation and high degree of automation, which are simple to understand and apply.
3. It has electrical components of internationally renowned brand with stable and reliable performance.
4. It has the automatic shutdown function of mechanical overload to ensure the safety of men and machines.
5. It can automatically eliminate the finished packaging products lacking packaging materials or instructions to ensure the quality of the finished packaging products.
6. It has the functions of fault display, alarm and finished product counting, which are convenient for maintaining machines and handling faults.
7. It can design all kinds of automatic feeders, conveying installations and other devices according to the requirements of customers.
8. It can be connected with hot-melt glue machines to adopt the sealing of hot-melt glue spraying and design hot-melt glue brushing devices.
9. It can be connected with aluminum-plastic packaging machines, pillow-type packaging machines, filling machines, soap making machines, inkjet printers (or supervision code systems), labeling machines, online weighing instruments, three-dimensional packaging machines, heat shrinkable packaging machines, belt bundling machines and other production lines to realize coordinated productions.
