Specification and size:
700mm (H) * 360mm (W) * 460mm (d)
(appearance drawing of 40 JCW)
Four material machine water way display
Schematic diagram of four material chiller and heater turbine mixing system
Powder box and mixing system in four material machine
[Optional machine accessories]
6-to-2 branch line connector, 24 V down pumping water pump (optional accessories, please buy separately)
[product parameters]

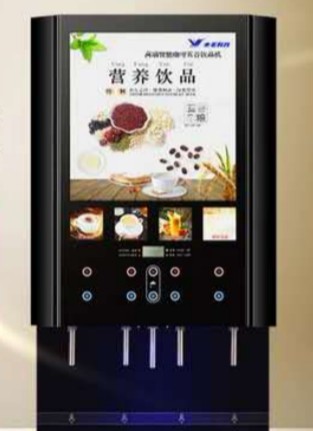

Model 1: four ingredients instant coffee beverage machine 40J (single heat type)
Voltage: AC220 V / 50 Hz, ac110 V / 60 Hz
Power: heating 1600W
Product size: 700mm * 360mm * 460mm (h * w * d) bottom cabinet size: 700mm * 360mm * 460mm (h * w * d)
Net weight: 32kg (single heat type) bottom cabinet: 15kg
Select menu:
Coffee, milk tea, milk, soybean milk, fruit C or any four kinds of instant drinks;
Stock of raw materials: 1500g each in 4 drums
Storage capacity: water storage tank 6L, heating tank 1.6L
Water supply mode: upper barreled water or external water, lower pump
Display mode: LED & fnd (Chinese display / English display optional)
Panel display: highlight LED light panel display
Model 2: four ingredients instant coffee beverage machine 40jcw (ice heated electronic refrigeration)
Voltage: AC220 V / 50 Hz, ac110 V / 60 Hz
Power: 1600W heating, 85W refrigeration
Product size: 700mm * 360mm * 460mm (h * w * d) bottom cabinet size: 700mm * 360mm * 460mm (h * w * d)
Net weight: 35kg (bottom cabinet: 15kg)
Selection menu: 1: coffee, milk tea, milk, soybean milk, fruit C (ice hot drink can be set to convert) 4 choices;
2: Hot coffee, hot milk tea, hot soybean milk, hot orange juice, hot mango juice, iced coffee, Iced Milk Tea, iced soybean milk
Ice orange juice, ice mango juice, a total of 10 choices;
Stock of raw materials: 1500g each in 4 drums
Storage capacity: water storage tank 6L, heating tank 1.6L, cooling tank 0.6L
Refrigeration mode: dual chip semiconductor refrigeration (electronic refrigeration)
Water supply mode: upper barreled water or external water, lower pump
Display mode: LED & fnd (Chinese display / English display optional)
Panel display: highlight LED light panel display
Detection method:
No cup detection function
[product features]
Suitable for a variety of drinks:
Four flavors (coffee, milk tea, chocolate, milk, fruit C, soybean milk, cereal, coarse cereals, etc.) can be made at the same time A variety of instant drinks)
It's up to you to choose;
Suitable for special raw materials: (grains, coarse grains and soybean milk products)
The discharging system of the machine adopts the design of special raw material barrel for grains, large mixing agitator and vertical design, and special flour discharging motor for grains
Cereals and soymilk products can be used normally;
Free choice of cold and hot drinks: (ice hot type)
A cup of warm coffee and hot drink can warm your heart;
Hot summer - a cool drink can help you cool down and quench your thirst with just one click;
Drinking water supply in four seasons:
Continuous water supply throughout the year (normal temperature water, hot water, ice water) can turn on the refrigeration function in summer, you can drink cool drinking water without refrigerator!
It is the electrical equipment that the water dispenser upgrades and replaces;
High efficiency electronic refrigeration system: (ice hot type)
It adopts efficient electronic dual chip refrigeration system with less power consumption and fast refrigeration speed, which is suitable for the sale of cold drinks in summer.
Large and small cup setting function:
Customers can set the capacity of large and small cups (100-600ml) according to the needs of use; (including: water and powder)
Hot drink high refill function:
International advanced computer temperature control technology, and the use of 4000ml super large heating boiler, to ensure that in the peak period of machine business use, continuous non-stop
Intermittent supply of hot drinks;
Beverage taste and water regulation system:
According to different personal tastes, the taste concentration of coffee drinks can be adjusted freely, and the water output of the machine can also be adjusted freely.
Water temperature free regulation system:
It is equipped with a hot water storage tank, which can adjust the water temperature according to the climate change. (hot drink regulation range: 70 ~ 95 ℃)
Large capacity environmentally friendly raw material barrel:
It adopts the health and environmental protection materials which are harmless to human body. The maximum capacity of raw material barrel can reach 1600 g, which avoids the trouble of adding raw materials frequently.
Water shortage automatic display:
When the water storage in the machine is lower than the set value, the machine will give an alarm automatically to avoid the machine failure.
Sales statistics:
The sales quantity of each kind of beverage can be counted to facilitate the management of beverage sales statistics.
Multiple water intake modes: (3 kinds of water intake modes, flexible and convenient)
The machine is equipped with automatic exhaust and moisture-proof heating system, which can keep the air inside the machine dry and fresh for a long time, and ensure that the raw materials do not solidify,
It is equipped with filter design to prevent mosquitoes from entering the exhaust pipe.
Automatic cleaning system:
Daily automatic cleaning, to ensure that the coffee machine hygiene, simple and convenient, easy to operate, the machine in the process of use; if there are internal accidents
The system can solve the problem easily.
High speed rotary mixing system:
Through the high-speed rotating mixing system of the machine, the material and water can be fully mixed, so that the foam of the beverage is more delicate and the taste is more pure.
Fault self diagnosis system:
When there is a problem in the circuit part of the machine, the system will display the fault code on the display of the machine, and the machine will automatically
Lock, so that maintenance personnel troubleshooting, ensure machine and personal safety.
Display of LED light board:
High brightness LED lighting, can fully display the image of the customer brand, highlight the brand personality!
It is more likely to attract consumers to buy drinks at night or in dim light.
Touch button design:
Intelligent high-tech touch button design, choose to use more humanized and sense of science and technology, health generous, at the same time with long-term durable keys
It is not easy to damage;
Intelligent cup detection design:
Intelligent, humanized and scientific design, to prevent the production of drinks without drink cups. Invisible design,
More scientific and reasonable
