  • Brand:

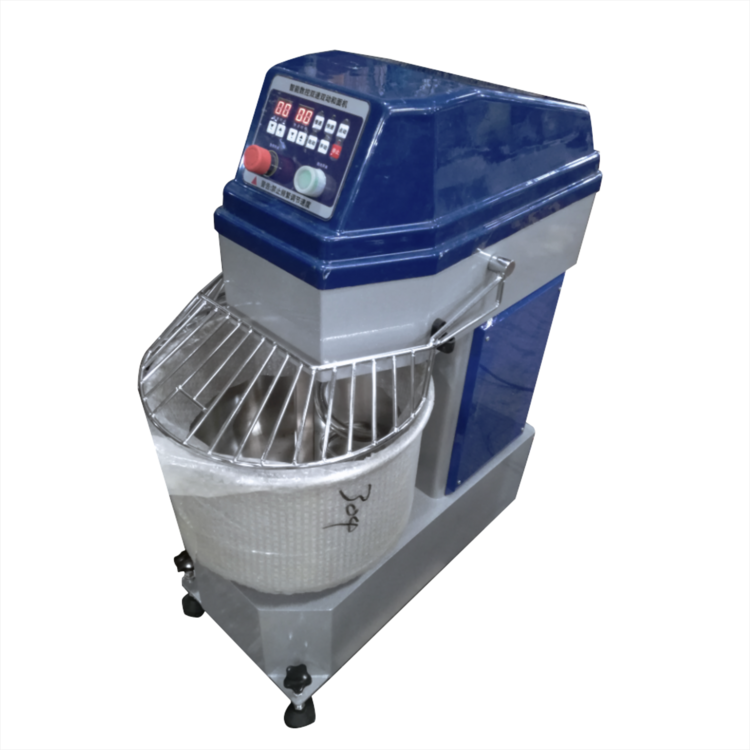

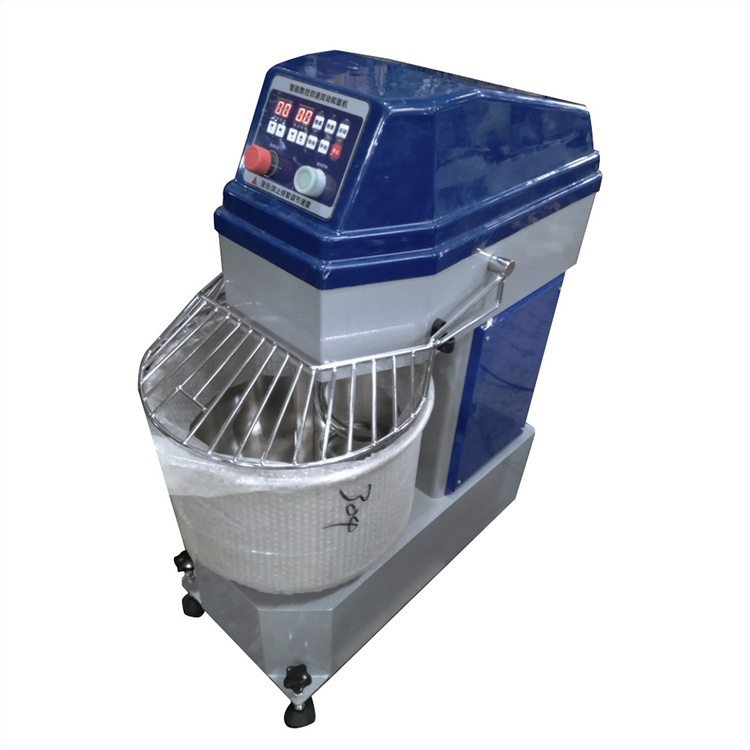

  • product name:JL-SF20 Spiral Mixer
  • Packing dimension: 80×42×83 cm

    220V/50Hz

    Power: 1.1 kw

    Capacity: 8  kg

    Stirring speed: 220-120 r/min

    Bowl: 19-11 r/min

    energy conservation

    With good quality copper motor

    Digital control / Timed / Frequency / double action/ double speed function



    Key Components and Specifications

     1. DESCRIPTION

    The product is provided with belt, chain shifting mechanism, and dough making

    bar and mixing tank for rotary motion. It is easily operated, safe and clean, of a compact structure, beautiful appearance and high working efficiency.



    2.TECHNICAL SPECIFICATIONS



    Item No.

    Bowl capacity

    (L)

    Max flour

    capacity

    (kg)

    Mixing speed

    (r/min)

    Bowl speed

    (r/min)

    Voltage

    (V/Hz)

    Power

    (kw)

    Dimensions

    (mm)

    JL-SF20

    20

    8

    240-120

    19-11

    220/50

    1.1

    680×390×940

    JL-SF30

    30

    12

    240-120

    19-11

    220/50

    1.5

    730×430×990

    JL-SF40

    40

    17

    285-110

    19-11

    220/50

    1.8

    780×480×1040



    Panel operation JL-SF20/30/40

    Capacity Panel







     Functions of Accessories



    1、Speed chaning switch

    2、Safety Guard

    3、Stainless steel Bowl

    4、Agitator shaft

    5、Stand/Mixer Pedestal



    This series capacity is from 20L to 40L, there are 3 control panel according to the client’s request capacity and usage patter.



    Packing method: covered with Wooden strip or plywood package

    Supply ability: 500 pieces per month

    Shipping port: Huangpu port, Guangzhou or Foshan port



    This machine is driven by quality belt and quality Frequency converter. This shape is Europe Type adopting Technology from Germany, using experience of 23 year in kitchen equipment line, we make new production line in Foshan city , China. We are the No. 3 Famous company in Kitchen equipment line.



    Automatic stand cake mixer

    1.Adopt high strength synchronous belt, triangle belt and chain for transmission.

    2.The space parts touching face are made of advanced stainless steel.

    3.Double motions and double speeds can reach strong gluten by stirring slowly, it makes dough's expansibility well.

    4.Be extensively suitable for hotels,grogshops,bakeries,food factories,etc.



    FAQ

    What Methods of Payment Are Acceptable?

    1. Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.

    2. Western Union: we accept 100% payment via the western union.









Frother Machine

Frother Machine

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

25kg Spiral mixer

25kg Spiral mixer

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

SX-5 Spiral mixer

SX-5 Spiral mixer

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

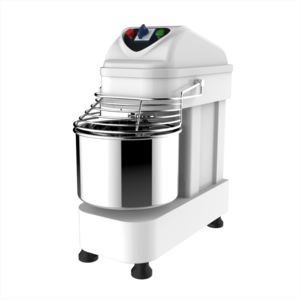

YQ-S20 Spiral mixer

YQ-S20 Spiral mixer

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

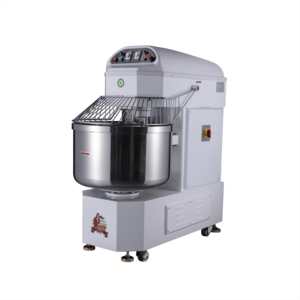

YQ-S130 50 kg Spiral mixer

YQ-S130 50 kg Spiral mixer

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

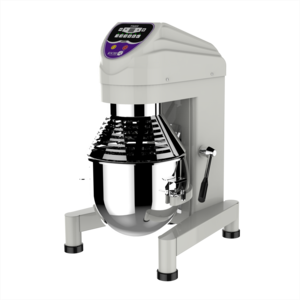

JL-B10 Food mixer

JL-B10 Food mixer

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

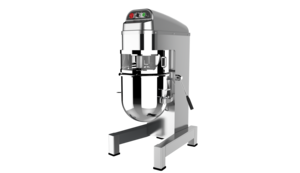

JL-B20A Food mixer

JL-B20A Food mixer

Koche kitchen equipment Co., Ltd

DetailsSend Inquiry

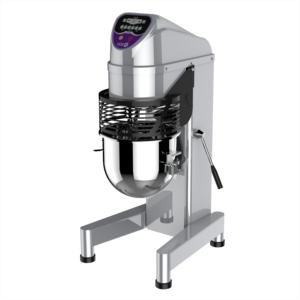

JL-B20B Food mixer
